| Mã đặt hàng | Dải đo | Độ phân giải | Độ chính xác | Khả năng đo sâu | Tiêu chuẩn | Chiều cao số |
| mm | mm | µm |
mm | |||
| 119710.0100 | 6...8 | 0.001 | 4 | 53 | IP54(IP40*) | 7 |
| 119710.0200 | 8...10 | 0.001 | 4 | 53 | IP54(IP40*) | 7 |
| 119710.0300 | 10...12.5 | 0.001 | 4 | 65 | IP54(IP40*) | 7 |
| 119710.0400 | 12.5...15 | 0.001 | 4 | 65 | IP54(IP40*) | 7 |
| 119710.0500 | 15...17.5 | 0.001 | 4 | 65 | IP54(IP40*) | 7 |
| 119710.0600 | 17.5...20 | 0.001 | 4 | 95 | IP54(IP40*) | 7 |
| 119710.0700 | 20...25 | 0.001 | 4 | 100 | IP54(IP40*) | 7 |
| 119710.0800 | 25...30 | 0.001 | 4 | 100 | IP54(IP40*) | 7 |
| 119710.0900 | 30...35 | 0.001 | 4 | 100 | IP54(IP40*) | 7 |
| 119710.1000 | 35...40 | 0.001 | 4 | 100 | IP54(IP40*) | 7 |
| 119710.1100 | 40...50 | 0.001 | 5 | 140 | IP54(IP40*) | 7 |
| 119710.1200 | 50...60 | 0.001 | 5 | 140 | IP54(IP40*) | 7 |
| 119710.1300 | 60...70 | 0.001 | 5 | 140 | IP54(IP40*) | 7 |
| 119710.1400 | 70...85 | 0.001 | 5 | 140 | IP54(IP40*) | 7 |
| 119710.1500 | 85...100 | 0.001 | 5 | 140 | IP54(IP40*) | 7 |
| 119710.1600 | 100...125 | 0.001 | 6 | 175 | IP54(IP40*) | 7 |
| 119710.1700 | 125...150 | 0.001 | 6 | 175 | IP54(IP40*) | 7 |
| 119710.1800 | 150...175 | 0.001 | 7 | 175 | IP54(IP40*) | 7 |
| 119710.1900 | 175...200 | 0.001 | 7 | 175 | IP54(IP40*) | 7 |

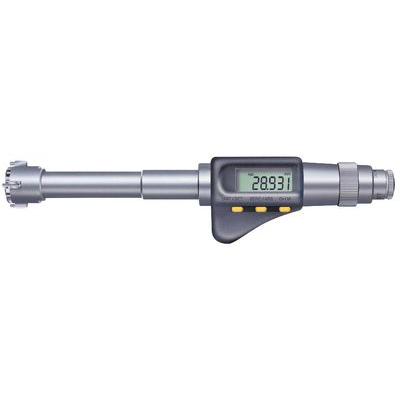

119710 Internal digital micrometer TESA ALESOMETER
CAPA µ SYSTEM - Self-centering and self-aligning internal micrometer with a 3-line contact to the test object. Can be used for through holes and blind holes. From 10 mm also suitable for short centering shoulders.
Features:
LCD display
UNIT/SET (conversion mm/inch)
ZERO/ABS (zero setting of the display/ABSOLUTE mode)
Automatic shutdown
Data output Opto
Package contents:
Delivered in case incl. factory certifiate.
Appropriate accessories:
109145 Accessories SYLVAC
154740 Radio module IBR rf1
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
