| Mã đặt hàng | 120120.0100 | 120120.0200 | 120120.0300 | 120120.0400 | |
| Dải đo | mm | 15...30 | 30...60 | 60...90 | 90...120 |
| Độ phân giải | mm | 0.002 | 0.002 | 0.002 | 0.002 |
| Độ chính xác | µm | 4 | 4...5 | 5 | 5...6 |
| Dải đo 1 | mm | 15...20 | 30...40 | 60...70 | 90...100 |
| Dải đo 2 | mm | 20...25 | 40...50 | 70...80 | 100...110 |
| Dải đo 3 | mm | 25...30 | 50...60 | 80...90 | 110...120 |
| Độ mở | mm | 150 | 150 | 150 | 150 |

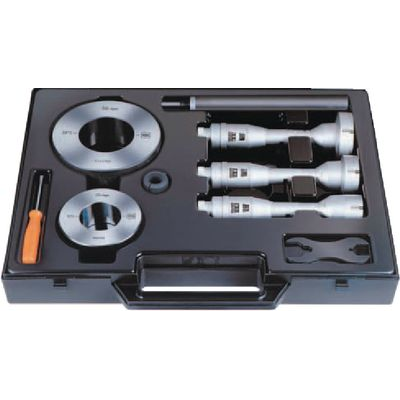

120120 Inside micrometers set TESA TRI-O-BOR
Self-centering and self-aligning internal micrometer with a 3-line contact to the test object. As well as through boreholes, particularly suitable for base boreholes (from Ø 15 mm).
Package contents:
Delivered in own case incl. measuring elements, measuring heads, adjusting rings, extension and factory certifiate
