| Mã đặt hàng | Dải đo | Độ phân giải | Độ chính xác | Khả năng đo sâu |
| mm | mm | µm | mm | |
| 120162.0010 | 6...8 | 0.001 | 4 | 58 |
| 120162.0020 | 8...10 | 0.001 | 4 | 58 |
| 120162.0030 | 10...12 | 0.001 | 4 | 58 |
| 120162.0040 | 12...16 | 0.001 | 4 | 64 |
| 120162.0050 | 16...20 | 0.001 | 4 | 64 |
| 120162.0060 | 20...25 | 0.005 | 4 | 68 |
| 120162.0070 | 25...30 | 0.005 | 4 | 68 |
| 120162.0080 | 30...40 | 0.005 | 4 | 76 |
| 120162.0090 | 40...50 | 0.005 | 4 | 76 |
| 120162.0100 | 50...60 | 0.005 | 5 | 79 |
| 120162.0110 | 60...70 | 0.005 | 5 | 79 |
| 120162.0120 | 70...85 | 0.005 | 5 | 97 |
| 120162.0130 | 85...100 | 0.005 | 5 | 97 |
| 120162.0140 | 100...125 | 0.005 | 6 | 132 |
| 120162.0150 | 125...150 | 0.005 | 6 | 132 |
| 120162.0160 | 150...175 | 0.005 | 7 | 132 |
| 120162.0170 | 175...200 | 0.005 | 7 | 132 |

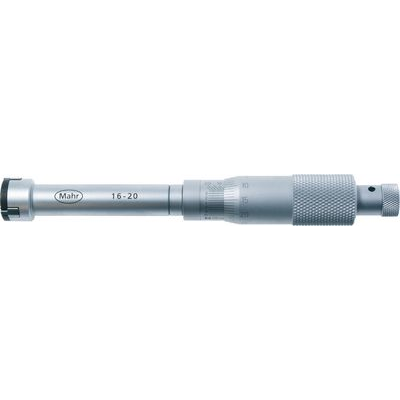

120162 Inside micrometer MAHR Micromar 44 A
Self-centering and self-aligning inside micrometer with a 3-line contact to the test object. Can be used for through holes and blind holes (from Ø 12 mm).
Features:
Scales matt chrome-plated
Measuring anvils from Ø 12 mm carbide tipped
Measuring anvils are positioned at 3 x 120°
Measuring heads from Ø 40 mm made of aluminium (weight reduction)
