| Mã đặt hàng | 119700.0100 | 119700.0200 | 119700.0300 | 119700.0400 | |
| Dải đo | mm | 6...10 | 10...20 | 20...40 | 40...100 |
| Độ phân giải | mm | 0.001 | 0.001 | 0.001 | 0.001 |
| Độ chính xác | µm | 4 | 4 | 4 | 4...5 |
| Dải đo 1 | mm | 6...8 | 10...12.5 | 20...25 | 40...50 |
| Dải đo 2 | mm | 8...10 | 12.5...15 | 25...30 | 50...60 |
| Dải đo 3 | mm | --- | 15...17.5 | 30...35 | 60...70 |
| Dải đo 4 | mm | --- | 17.5...20 | 35...40 | 70...85 |
| Dải đo 5 | mm | --- | --- | --- | 85...100 |
| Tiêu chuẩn | IP54* | IP54* | IP54* | IP54* | |
| Chiều cao số | mm | 7 | 7 | 7 | 7 |

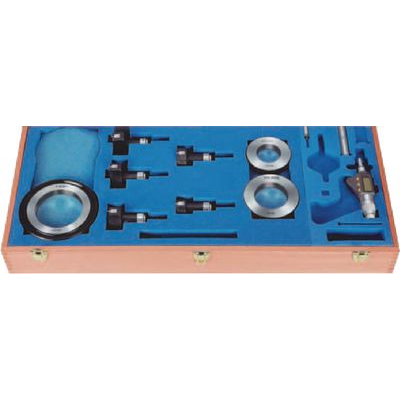

119700 Internal digital micrometer set TESA ALESOMETER
CAPA µ SYSTEM - Self-centering and self-aligning internal micrometer with a 3-line contact to the test object. Can be used for measurements in through-holes and also in base boreholes. From Ø 10 mm also suitable for short spigots.
Features:
LCD display
UNIT/SET (conversion mm/inch)
ZERO/ABS (sets display to zero/ABSOLUT mode)
Automatic shutdown
Data output Opto
Package contents:
Delivered in own case with individual instruments, adjusting rings, extensions and factory certifcate.
Appropriate accessories:
109145 Accessories SYLVAC
154740 Radio module IBR rf1
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
