| Mã đặt hàng | Dải đo | Độ phân giải | Độ chính xác | Khả năng đo sâu | Tiêu chuẩn | Chiều cao số |
| mm | mm | µm | mm | mm | ||
| 119690.0100 | 3.5...4.0 | 0.001 | 4 | 17 | IP54* | 7 |
| 119690.0200 | 4.0...4.5 | 0.001 | 4 | 17 | IP54* | 7 |
| 119690.0300 | 4.5...5.5 | 0.001 | 4 | 22 | IP54* | 7 |
| 119690.0400 | 5.5...6.5 | 0.001 | 4 | 22 | IP54* | 7 |
| 119690.0500 | 6...8 | 0.001 | 4 | 51 | IP54* | 7 |
| 119690.0600 | 8...10 | 0.001 | 4 | 51 | IP54* | 7 |
| 119690.0700 | 10...12 | 0.001 | 4 | 51 | IP54* | 7 |
| 119690.0800 | 11...14 | 0.001 | 4 | 62 | IP54* | 7 |
| 119690.0900 | 14...17 | 0.001 | 4 | 62 | IP54* | 7 |
| 119690.1000 | 17...20 | 0.001 | 4 | 77 | IP54* | 7 |
| 119690.1100 | 20...25 | 0.001 | 4 | 77 | IP54* | 7 |
| 119690.1200 | 25..30 | 0.001 | 4 | 77 | IP54* | 7 |
| 119690.1300 | 30...35 | 0.001 | 4 | 77 | IP54* | 7 |
| 119690.1400 | 35...40 | 0.001 | 4 | 77 | IP54* | 7 |
| 119690.1500 | 40...50 | 0.001 | 5 | 81 | IP54* | 7 |
| 119690.1600 | 50...60 | 0.001 | 5 | 81 | IP54* | 7 |
| 119690.1700 | 60...70 | 0.001 | 5 | 81 | IP54* | 7 |
| 119690.1800 | 70...80 | 0.001 | 5 | 81 | IP54* | 7 |
| 119690.1900 | 80...90 | 0.001 | 5 | 81 | IP54* | 7 |
| 119690.2000 | 90...100 | 0.001 | 5 | 81 | IP54* | 7 |
| 119690.2100 | 100...125 | 0.001 | 6 | 65 | IP54* | 7 |
| 119690.2200 | 125...150 | 0.001 | 6 | 65 | IP54* | 7 |
| 119690.2300 | 150...175 | 0.001 | 7 | 65 | IP54* | 7 |
| 119690.2400 | 175...200 | 0.001 | 7 | 65 | IP54* | 7 |
| 119690.2500 | 200...225 | 0.001 | 8 | 65 | IP54* | 7 |
| 119690.2600 | 225...250 | 0.001 | 8 | 65 | IP54* | 7 |
| 119690.2700 | 250...275 | 0.001 | 8 | 65 | IP54* | 7 |
| 119690.2800 | 275...300 | 0.001 | 8 | 65 | IP54* | 7 |

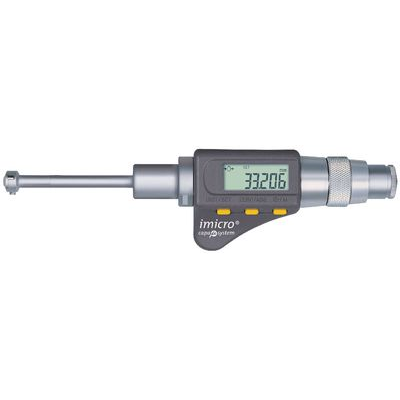

119690 Internal digital micrometer TESA IMICRO
CAPA µ SYSTEM - Self-centering and self-aligning internal micrometer with a 3-line contact to the test object. Can be used for through holes.
Features:
LCD display
UNIT/SET (conversion mm/inch)
ZERO/ABS (sets display to zero/ABSOLUT mode)
Automatic shutdown
Data output Opto
Package contents:
Delivered in case incl. factory certifiate and declaration of conformity.
Appropriate accessories:
109145 Accessories SYLVAC
154740 Radio module IBR rf1
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
