| Mã đặt hàng | Dải đo | Độ chính xác | Khả năng đo sâu |
| mm | µm | mm | |
| 119775.0010 | 6...8 | 3 | 58 |
| 119775.0020 | 8...10 | 3 | 58 |
| 119775.0030 | 10...12 | 3 | 58 |
| 119775.0040 | 12...16 | 3 | 64 |
| 119775.0050 | 16...20 | 3 | 64 |
| 119775.0060 | 20...25 | 3 | 68 |
| 119775.0070 | 25...30 | 3 | 68 |
| 119775.0080 | 30...40 | 3 | 76 |
| 119775.0090 | 40...50 | 3 | 76 |
| 119775.0100 | 50...60 | 4 | 79 |
| 119775.0110 | 60...70 | 4 | 79 |
| 119775.0120 | 70...85 | 4 | 97 |
| 119775.0130 | 85...100 | 4 | 97 |
| 119775.0140 | 100...125 | 5 | 132 |
| 119775.0150 | 125...150 | 5 | 132 |
| 119775.0160 | 150...175 | 6 | 132 |
| 119775.0170 | 175...200 | 6 | 132 |

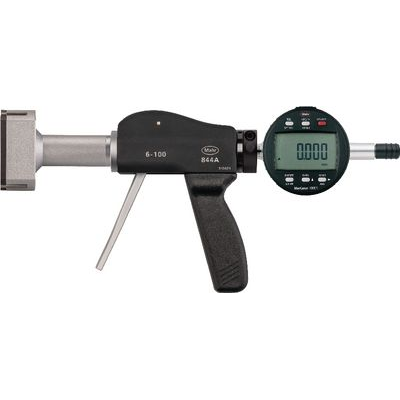

119775 Measuring pistol MAHR Micromar 844 A
The measuring pistol makes it possible to centre quickly while measuring. The measuring head hasa 3-line contact to the test object. Can be used for through holes and blind holes (from Ø 12 mm).
Features:
Measuring anvils from Ø 12 mm carbide tipped
Measuring anvils are positioned at 3 x 120°
Measuring heads from Ø 40 mm made of aluminium (weight reduction)
Package contents:
Measuring pistol with measuring head in case without dial gauge.
Recommended dial gauge: 122110.0040 MarCator 1086 R (measuring range 25 mm)
