| Mã đặt hàng | Dải đo | Độ phân giải | Độ chính xác | Khả năng đo sâu |
| mm | mm | µm | mm | |
| 120042.0100 | 2...2.5 | 0.005 | 4 | 9 |
| 120042.0200 | 2.5...3 | 0.005 | 4 | 9 |
| 120042.0300 | 3...4 | 0.005 | 4 | 12 |
| 120042.0400 | 4...5 | 0.005 | 4 | 18 |
| 120042.0500 | 5...6 | 0.005 | 4 | 18 |
| 120042.0600 | 6...8 | 0.005 | 4 | 58 |
| 120042.0700 | 8...10 | 0.005 | 4 | 58 |
| 120042.0800 | 10...12.5 | 0.005 | 4 | 58 |
| 120042.0900 | 12.5...16 | 0.005 | 4 | 62 |
| 120042.1000 | 16...20 | 0.005 | 4 | 62 |
| 120042.1100 | 20...25 | 0.005 | 4 | 66 |
| 120042.1200 | 25...35 | 0.005 | 4 | 66 |
| 120042.1300 | 35...50 | 0.005 | 4 | 80 |
| 120042.1400 | 50...65 | 0.005 | 5 | 80 |
| 120042.1500 | 65...80 | 0.005 | 5 | 80 |
| 120042.1600 | 80...100 | 0.005 | 5 | 100 |
| 120042.1700 | 100...125 | 0.005 | 6 | 115 |
| 120042.1800 | 125...150 | 0.005 | 6 | 115 |
| 120042.1900 | 150...175 | 0.005 | 7 | 115 |
| 120042.2000 | 175...200 | 0.005 | 7 | 115 |
| 120042.2100 | 200...225 | 0.005 | 8 | 118 |
| 120042.2200 | 225...250 | 0.005 | 8 | 118 |
| 120042.2300 | 250...275 | 0.005 | 9 | 118 |
| 120042.2400 | 275...300 | 0.005 | 9 | 118 |

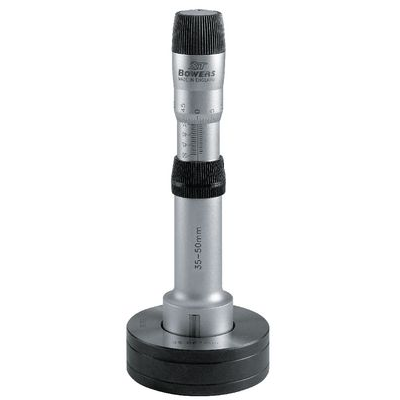

120042 Inside micrometer BOWERS
XT - Can be used for through holes and blind holes (from Ø 12.5 mm).
Features:
Fixed measuring inserts
Carbide upon request from Ø 12.5 mm
Measuring inserts positioned at 3 x 120° (from Ø 6 mm)
Package contents:
Delivered in case with UKAS certifiate, without ring gauges.
