| Mã đặt hàng | Dải đo | Độ phân giải | Dải đo 1 | Dải đo 2 | Dải đo 3 | Dải đo 4 |
| mm | mm | mm | mm | mm | ||
| 119770.0100 | 6...12 | - | 6...8 | 8...10 | 10...12 | - |
| 119770.0200 | 12...20 | - | 12...16 | 16...20 | - | - |
| 119770.0300 | 20...50 | - | 20...25 | 25...30 | 30...40 | 40...50 |
| 119770.0400 | 50...100 | - | 50...60 | 60...70 | 70...85 | 85...100 |
| 119770.1100 | 6...12 | 0.001 | 6...8 | 8...10 | 10...12 | - |
| 119770.1200 | 12...20 | 0.001 | 12...16 | 16...20 | - | - |
| 119770.1300 | 20...50 | 0.001 | 20...25 | 25...30 | 30...40 | 40...50 |
| 119770.1400 | 50...100 | 0.001 | 50...60 | 60...70 | 70...85 | 85...100 |

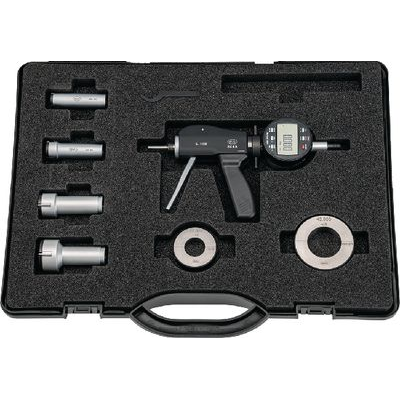

119770 Measuring pistol set MAHR Micromar 844 AS
The measuring pistol makes it possible to centre quickly while measuring and is equipped with interchangeable measuring heads. The measuring heads have a 3-line contact to the test object.Can be used for through holes and blind holes (from Ø 12 mm).
Designs:
119770.0100...119770.0400: without dial gauge
119770.1100...119770.1400: incl. dial gauge MarCator 1086 R
Features:
Measuring anvils from Ø 12 mm carbide tipped
Measuring anvils are positioned at 3 x 120°
Measuring heads from Ø 40 mm made of aluminium (weight reduction)
Package contents:
Measuring pistol with measuring heads and ring gauges in case.
Appropriate accessories:
109275 Accessories MAHR
Appropriate batteries:
119770.1100...119770.1400: 1 pieces 155050.1501 - CR2450 / 3.0 V (included in scope of delivery).
