| Mã đặt hàng | 120060.0100 | 120060.0200 | 120060.0300 | 120060.0400 | 120060.0500 | 120060.0600 | |
| Dải đo | mm | 3.5...6.5 | 6...12 | 11...20 | 20...40 | 40...100 | 100...200 |
| Độ phân giải | mm | 0.001 | 0.001 | 0.005 | 0.005 | 0.005 | 0.01 |
| Độ chính xác | µm | 4 | 4 | 4 | 4 | 4...5 | 6...7 |
| Dải đo 1 | mm | 3.5...4 | 6...8 | 11...14 | 20...25 | 40...50 | 100...125 |
| Dải đo 2 | mm | 4...4.5 | 8...10 | 14...17 | 25...30 | 50...60 | 125...150 |
| Dải đo 3 | mm | 4.5...5.5 | 10...12 | 17...20 | 30...35 | 60...70 | 150...175 |
| Dải đo 4 | mm | 5.5...6.5 | --- | --- | 35...40 | 70...80 | 175...200 |
| Dải đo 5 | mm | --- | --- | --- | --- | 80...90 | --- |
| Dải đo 6 | mm | --- | --- | --- | --- | 90...100 | --- |
| Độ mở | mm | --- | 100 | 150 | 150 | 150 | 150 |

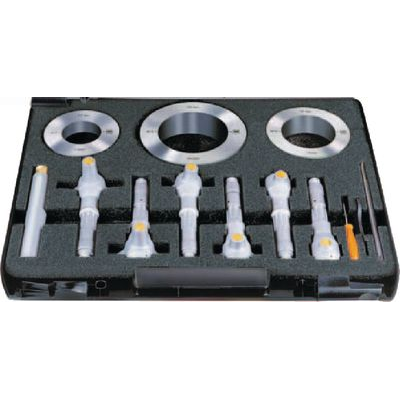

119710 Internal digital micrometer TESA ALESOMETER
CAPA µ SYSTEM - Self-centering and self-aligning internal micrometer with a 3-line contact to the test object. Can be used for through holes and blind holes. From 10 mm also suitable for short centering shoulders.
Features:
LCD display
UNIT/SET (conversion mm/inch)
ZERO/ABS (zero setting of the display/ABSOLUTE mode)
Automatic shutdown
Data output Opto
Package contents:
Delivered in case incl. factory certifiate.
Appropriate accessories:
109145 Accessories SYLVAC
154740 Radio module IBR rf1
Appropriate batteries:
1 pieces 155050.1400 - CR2032 / 3.0 V (included in scope of delivery).
