| Mã đặt hàng | 120040.0100 | 120040.0200 | 120040.0300 | 120040.0400 | 120040.0500 | 120040.0600 | 120040.0700 | 120040.0800 | |
| Dải đo | mm | 2...3 | 3...6 | 6...10 | 10...20 | 20...50 | 50...100 | 100...150 | 150...200 |
| Độ phân giải | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Độ chính xác | µm | 4 | 4 | 4 | 4 | 4 | 5 | 6 | 7 |
| Dải đo 1 | mm | 2...2.5 | 3...4 | 6...8 | 10...12.5 | 20...25 | 50...65 | 100...125 | 150...175 |
| Dải đo 2 | mm | 2.5...3 | 4...5 | 8...10 | 12.5...16 | 25...35 | 65...80 | 125...150 | 175...200 |
| Dải đo 3 | mm | -- | 5...6 | -- | 16...20 | 35...50 | 80...100 | -- | -- |
| Khả năng đo sâu | mm | 9/9 | 12/18/2018 | 58/58 | 58/62/62 | 66/66/80 | 80/80/100 | 115/115 | 115/11 |

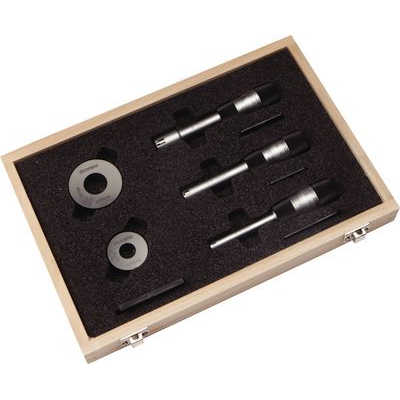

120040 Set of internal micrometers BOWERS
SXT - Can be used for through holes and base boreholes (from Ø 12.5 mm).
Features:
Fixed measuring inserts
Carbide upon request from Ø 12.5 mm
Measuring inserts positioned at 3 x 120° (from Ø 6 mm)
Package contents:
Delivered incl. ring gauges with UKAS certifiate.
| Mã đặt hàng | 120040.0100 | 120040.0200 | 120040.0300 | 120040.0400 | 120040.0500 | 120040.0600 | 120040.0700 | 120040.0800 | |
| Dải đo | mm | 2...3 | 3...6 | 6...10 | 10...20 | 20...50 | 50...100 | 100...150 | 150...200 |
| Độ phân giải | mm | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 | 0.005 |
| Độ chính xác | µm | 4 | 4 | 4 | 4 | 4 | 5 | 6 | 7 |
| Dải đo 1 | mm | 2...2.5 | 3...4 | 6...8 | 10...12.5 | 20...25 | 50...65 | 100...125 | 150...175 |
| Dải đo 2 | mm | 2.5...3 | 4...5 | 8...10 | 12.5...16 | 25...35 | 65...80 | 125...150 | 175...200 |
| Dải đo 3 | mm | -- | 5...6 | -- | 16...20 | 35...50 | 80...100 | -- | -- |
| Khả năng đo sâu | mm | 9/9 | 12/18/2018 | 58/58 | 58/62/62 | 66/66/80 | 80/80/100 | 115/115 | 115/11 |
120040 Set of internal micrometers BOWERS
SXT - Can be used for through holes and base boreholes (from Ø 12.5 mm).
Features:
Fixed measuring inserts
Carbide upon request from Ø 12.5 mm
Measuring inserts positioned at 3 x 120° (from Ø 6 mm)
Package contents:
Delivered incl. ring gauges with UKAS certifiate.
