Mảnh cắt, chíp tiện WNMG SANDVIK - # 302160

Thông tin sản phẩm

302320 - Indexable insert TNGA-CBN T-MAX P
Double-sided, triangular.
Types
• 7015: High-performance grade with high cutting speeds for hardened steel
Appropriate tool holders:
300100 Tool holder PTGNR T-MAX P
300120 Tool holder PTFNR T-MAX P
301020 Boring bar T-MAX P PTFNR

Catalog

Dowload catalog

Xem thêm Thu gọn

Mảnh cắt, chíp tiện WNMG SANDVIK - # 302160

Thương hiệu: SANDVIK

Liên hệ

302320 - Indexable insert TNGA-CBN T-MAX P
Double-sided, triangular.

Xem thêm

Các thương hiệu bán chạy

TOHNICHI

KANON

HAMMER CASTER

HATAYA

FUTURO

BAHCO

FACOM

KUKKO

TRUSCO

PB SWISS TOOL

SYLVAC

STAHLWILLE

HAZET

CKD

LOBSTER

Thông tin sản phẩm

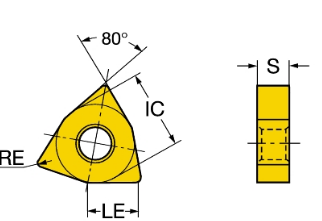

Mã đặt hàng	Model	Lớp mạ	iC	l	r	s
			mm	mm	mm	mm
302160.0150	WNMG060404-PF	4215	9.52	6	0.4	4.76
302160.0200	WNMG060408-MF	2015	9.52	6	0.8	4.76
302160.0350	WNMG060408-PF	4215	9.52	6	0.8	4.76
302160.0400	WNMG060408-MM	2025	9.52	6	0.8	4.76
302160.0551	WNMG060408-PM	4325	9.52	6	0.8	4.76
302160.0651	WNMG060408-PR	4325	9.52	6	0.8	4.76
302160.0700	WNMG060408-MR	2025	9.52	6	0.8	4.76
302160.0800	WNMG060408-MR	2035	9.52	6	0.8	4.76
302160.0950	WNMG080404-PF	4215	12.7	8	0.4	4.76
302160.1050	WNMG080408-PF	4215	12.7	8	0.8	4.76
302160.1100	WNMG080408-MF	2015	12.7	8	0.8	4.76
302160.1200	WNMG080408-MR	2025	12.7	8	0.8	4.76
302160.1300	WNMG080408-MR	2035	12.7	8	0.8	4.76
302160.1451	WNMG080408-PM	4325	12.7	8	0.8	4.76
302160.1551	WNMG080408-PR	4325	12.7	8	0.8	4.76
302160.1650	WNMG080408-PR	4235	12.7	8	0.8	4.76
302160.1700	WNMG080408-MM	2025	12.7	8	0.8	4.76
302160.1750	WNMG080408-KM	3210	12.7	8	0.8	4.76
302160.1800	WNMG080412-MR	2025	12.7	8	1.2	4.76
302160.1951	WNMG080412-PR	4325	12.7	8	1.2	4.76
302160.2000	WNMG080412-MM	2015	12.7	8	1.2	4.76

Catalog

Dowload catalog

Xem thêm Thu gọn
