| Mã đặt hàng | Model | Lớp mạ | IC | l | r | s | bs |
| mm | mm | mm | mm | ||||
| 302720.0100 | VCEX110300R-F | 5015 | 6.35 | 11 | 0 | 3.18 | 1.38 |
| 302720.0200 | VCEX110300R-F | 1020 | 6.35 | 11 | 0 | 3.18 | 1.38 |
| 302720.0300 | VCEX110301R-F | 5015 | 6.35 | 11 | 0.1 | 3.18 | 1.22 |
| 302720.0400 | VCEX110301R-F | 1020 | 6.35 | 11 | 0.1 | 3.18 | 1.22 |

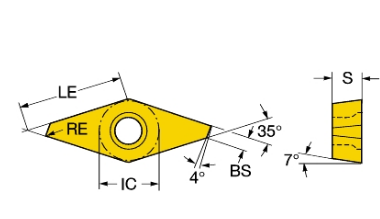

302720 - Indexable insert VCEX CoroTurn 107
Single-sided, rhombic 35°.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1020: for stainless steel, cast iron, non-ferrous metals and hardened steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel
