Mảnh cắt, chíp tiện CPMT SANDVIK - # 303000

Thông tin sản phẩm

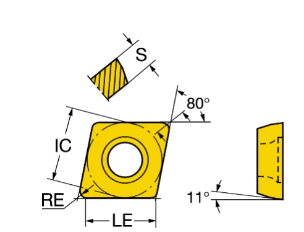

Mã đặt hàng	Model	Lớp mạ	iC	l	r	s
		mm	mm	mm	mm
303000.0100	CPMT060202-PF	5015	6.35	6	0.2	2.38
303000.0200	CPMT060202-MF	1025	6.35	6	0.2	2.38
303000.0350	CPMT060204-PF	4215	6.35	6	0.4	2.38
303000.0400	CPMT060204-MF	2025	6.35	6	0.4	2.38
303000.0551	CPMT060204-PM	4325	6.35	6	0.4	2.38
303000.0600	CPMT060204-MM	2025	6.35	6	0.4	2.38
303000.0751	CPMT060208-PM	4325	6.35	6	0.8	2.38
303000.0800	CPMT060208-MM	2025	6.35	6	0.8	2.38

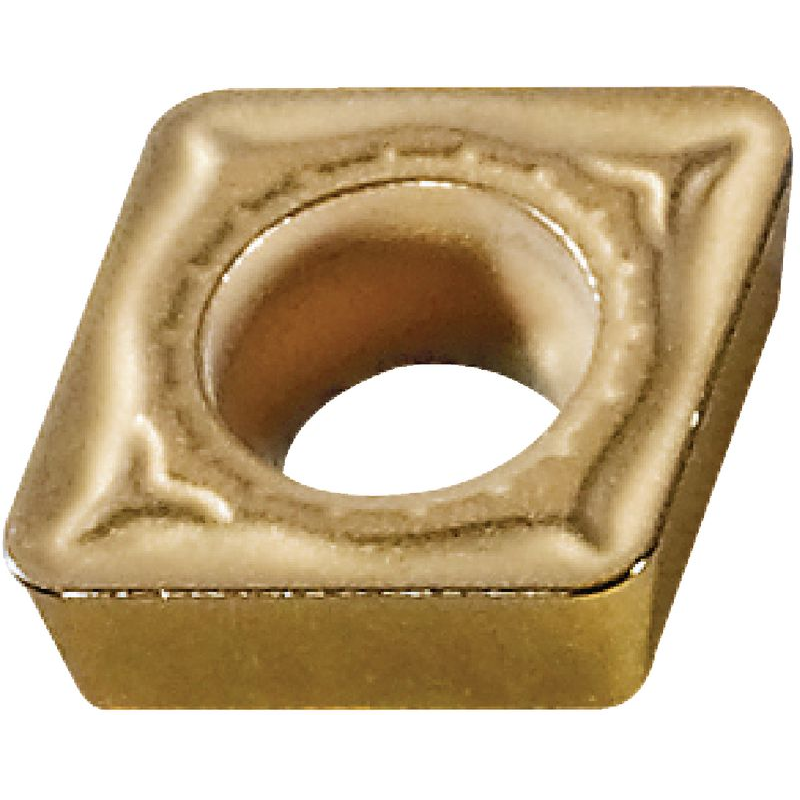

303000 - Indexable insert CPMT CoroTurn 111
Single-sided, rhombic 80°.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1025: fiish machining of stainless steel
• 2025: pre-fiishing/rough machining of stainless steel
• 4215: fiish machining/rough machining of steel/cast steel
• 4225: fiish machining/rough machining of steel/cast steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel

Catalog

Dowload catalog
