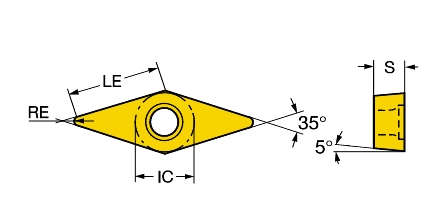

| Mã đặt hàng | Model | Lớp mạ | IC | l | r | s |
| mm | ||||||
| 302730.0100 | VCGT110301UM | 1115 | 6.35 | 11 | 0.1 | 3.18 |
| 302730.0200 | VCGT110301UM | 1125 | 6.35 | 11 | 0.1 | 3.18 |
| 302730.0300 | VCGT110302UM | 1115 | 6.35 | 11 | 0.2 | 3.18 |
| 302730.0400 | VCGT110302UM | 1125 | 6.35 | 11 | 0.2 | 3.18 |
| 302730.0500 | VCGT110304UM | 1115 | 6.35 | 11 | 0.4 | 3.18 |
| 302730.0600 | VCGT110304UM | 1125 | 6.35 | 11 | 0.4 | 3.18 |
302720 - Indexable insert VCEX CoroTurn 107
Single-sided, rhombic 35°.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1020: for stainless steel, cast iron, non-ferrous metals and hardened steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel
| Mã đặt hàng | Model | Lớp mạ | IC | l | r | s |
| mm | ||||||
| 302730.0100 | VCGT110301UM | 1115 | 6.35 | 11 | 0.1 | 3.18 |
| 302730.0200 | VCGT110301UM | 1125 | 6.35 | 11 | 0.1 | 3.18 |
| 302730.0300 | VCGT110302UM | 1115 | 6.35 | 11 | 0.2 | 3.18 |
| 302730.0400 | VCGT110302UM | 1125 | 6.35 | 11 | 0.2 | 3.18 |
| 302730.0500 | VCGT110304UM | 1115 | 6.35 | 11 | 0.4 | 3.18 |
| 302730.0600 | VCGT110304UM | 1125 | 6.35 | 11 | 0.4 | 3.18 |
302720 - Indexable insert VCEX CoroTurn 107
Single-sided, rhombic 35°.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1020: for stainless steel, cast iron, non-ferrous metals and hardened steel
• 5015: uncoated Cermet, fiish machining of low- and high-alloy steel
