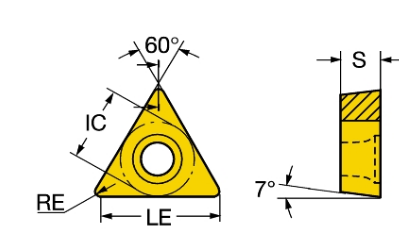

| Mã đặt hàng | Model | Lớp mạ | iC | l | r | s |
| mm | mm | mm | mm | |||
| 302680.0100 | TCGX06T104-AL | H10 | 3.97 | 6 | 0.4 | 1.98 |
| 302680.0200 | TCGX090202-AL | H10 | 5.56 | 9 | 0.2 | 2.38 |
| 302680.0300 | TCGX090204-AL | H10 | 5.56 | 9 | 0.4 | 2.38 |
| 302680.0400 | TCGX110202-AL | H10 | 6.35 | 11 | 0.2 | 2.38 |
| 302680.0500 | TCGX110204-AL | H10 | 6.35 | 11 | 0.4 | 2.38 |
| 302680.0600 | TCGX110304-AL | H10 | 6.35 | 11 | 0.4 | 3.18 |
| 302680.0700 | TCGX110208-AL | H10 | 6.35 | 11 | 0.8 | 2.38 |
| 302680.0800 | TCGX16T304-AL | H10 | 9.52 | 16 | 0.4 | 3.97 |
| 302680.0900 | TCGX16T308-AL | H10 | 9.52 | 16 | 0.8 | 3.97 |

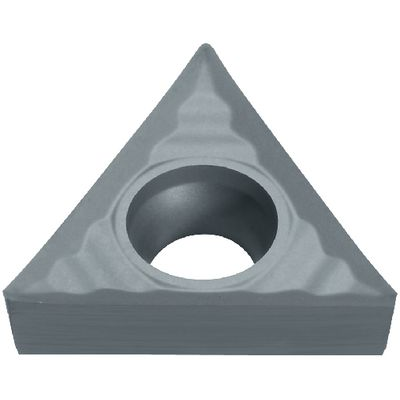

302680 - Indexable insert TCGX-AL CoroTurn 107
Single-sided, triangular, ground.
Geometries
• AL (Al)
Types
• H10: Uncoated, fie grained; outstanding cutting edge sharpness; for Al.
Appropriate tool holders:
300480 Tool holder STGCR CoroTurn 107
301360 Boring bar STFCR CoroTurn 107
301380 Boring bar STFCR CoroTurn 107
301400 Carbide boring bar STFCR CoroTurn 107
