| Mã đặt hàng | Model | Lớp mạ | iC | l | r | s |
| mm | mm | mm | mm | |||
| 302150.0100 | VNMG160404MF | 2015 | 9.53 | 16 | 0.4 | 4.76 |
| 302150.0201 | VNMG160404PF | 4315 | 9.53 | 16 | 0.4 | 4.76 |
| 302150.0300 | VNMG160404SF | 1105 | 9.53 | 16 | 0.4 | 4.76 |
| 302150.0400 | VNMG160404SM | 1105 | 9.53 | 16 | 0.4 | 4.76 |
| 302150.0500 | VNMG160408MF | 2015 | 9.53 | 16 | 0.8 | 4.76 |
| 302150.0600 | VNMG160408MM | 2025 | 9.53 | 16 | 0.8 | 4.76 |
| 302150.0701 | VNMG160408PF | 4315 | 9.53 | 16 | 0.8 | 4.76 |
| 302150.0801 | VNMG160408PM | 4325 | 9.53 | 16 | 0.8 | 4.76 |
| 302150.0900 | VNMG160408SF | 1105 | 9.53 | 16 | 0.8 | 4.76 |
| 302150.1000 | VNMG160408SM | 1105 | 9.53 | 16 | 0.8 | 4.76 |
| 302150.1101 | VNMG160412PM | 4325 | 9.53 | 16 | 1.2 | 4.76 |
| 302150.1200 | VNMG160412SF | 1105 | 9.53 | 16 | 1.2 | 4.76 |
| 302150.1300 | VNMG160412SM | 1105 | 9.53 | 16 | 1.2 | 4.76 |

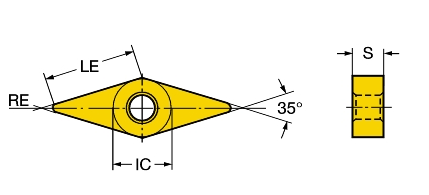

302150 - Indexable insert VNMG T-MAX
Double-sided, rhombic 35°.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 1105: high-performance, for superalloys
• 2015: fiish machining and light rough machining of stainless steel
• 2025: pre-fiishing/rough machining of stainless steel
• 4215: fiishing/rough machining of steel/cast steel
• 4225: fiishing/rough machining of steel/cast steel
