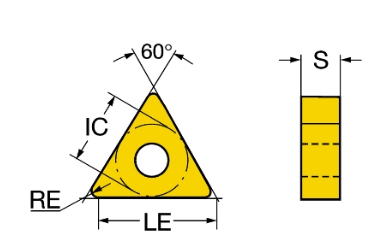

| Mã đặt hàng | Model | Lớp mạ | IC | l | r | s |
| mm | mm | mm | mm | |||
| 302140.0151 | TNMG110304-QM | 4325 | 6.35 | 11 | 0.4 | 3.18 |
| 302140.0251 | TNMG110308-QM | 4325 | 6.35 | 11 | 0.8 | 3.18 |
| 302140.0300 | TNMG160404-MF | 2015 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0450 | TNMG160404-PM | 4215 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0551 | TNMG160404-PM | 4325 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0650 | TNMG160404-PF | 4215 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0700 | TNMG160408-MF | 2015 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.0800 | TNMG160408-MR | 2025 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.0951 | TNMG160408-PF | 4315 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1051 | TNMG160408-PM | 4315 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1151 | TNMG160408-PM | 4325 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1200 | TNMG160408-MM | 2015 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1300 | TNMG160408-MM | 2025 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1451 | TNMG160408-PR | 4325 | 9.52 | 16 | 0.8 | 4.76 |

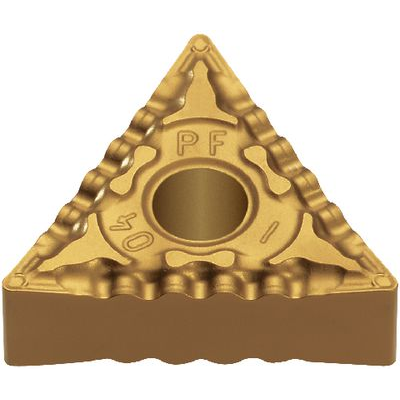

302140 - Indexable insert TNMG T-MAX P
Double-sided, triangular.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 2015: fiish machining and light rough machining of stainless steel
• 2025: pre-fiishing/rough machining of stainless steel
• 4215: fiishing/rough machining of steel/cast steel
• 4225: fiishing/rough machining of steel/cast steel
Appropriate tool holders:
300100 Tool holder PTGNR T-MAX P
300120 Tool holder PTFNR T-MAX P
301020 Boring bar T-MAX P PTFNR
| Mã đặt hàng | Model | Lớp mạ | IC | l | r | s |
| mm | mm | mm | mm | |||
| 302140.0151 | TNMG110304-QM | 4325 | 6.35 | 11 | 0.4 | 3.18 |
| 302140.0251 | TNMG110308-QM | 4325 | 6.35 | 11 | 0.8 | 3.18 |
| 302140.0300 | TNMG160404-MF | 2015 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0450 | TNMG160404-PM | 4215 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0551 | TNMG160404-PM | 4325 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0650 | TNMG160404-PF | 4215 | 9.52 | 16 | 0.4 | 4.76 |
| 302140.0700 | TNMG160408-MF | 2015 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.0800 | TNMG160408-MR | 2025 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.0951 | TNMG160408-PF | 4315 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1051 | TNMG160408-PM | 4315 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1151 | TNMG160408-PM | 4325 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1200 | TNMG160408-MM | 2015 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1300 | TNMG160408-MM | 2025 | 9.52 | 16 | 0.8 | 4.76 |
| 302140.1451 | TNMG160408-PR | 4325 | 9.52 | 16 | 0.8 | 4.76 |
302140 - Indexable insert TNMG T-MAX P
Double-sided, triangular.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 2015: fiish machining and light rough machining of stainless steel
• 2025: pre-fiishing/rough machining of stainless steel
• 4215: fiishing/rough machining of steel/cast steel
• 4225: fiishing/rough machining of steel/cast steel
Appropriate tool holders:
300100 Tool holder PTGNR T-MAX P
300120 Tool holder PTFNR T-MAX P
301020 Boring bar T-MAX P PTFNR
