| Mã đặt hàng | Model | Lớp mạ | l | r | s |
| mm | mm | mm | |||
| 302230.0150 | KNUX16 | 0405L-11 | 4225 | 16 | 0.5 |
| 302230.0151 | KNUX16 | 0405L-11 | 4325 | 16 | 0.5 |
| 302230.0200 | KNUX16 | 0405L-11 | 2025 | 16 | 0.5 |
| 302230.0350 | KNUX16 | 0405L-12 | 4225 | 16 | 0.5 |
| 302230.0351 | KNUX16 | 0405L-12 | 4325 | 16 | 0.5 |
| 302230.0450 | KNUX16 | 0410L-11 | 4225 | 16 | 1 |
| 302230.0451 | KNUX16 | 0410L-11 | 4325 | 16 | 1 |
| 302230.0500 | KNUX16 | 0410L-11 | 2025 | 16 | 1 |
| 302230.0650 | KNUX16 | 0410L-12 | 4225 | 16 | 1 |
| 302230.0651 | KNUX16 | 0410L-12 | 4325 | 16 | 1 |
| 302230.0700 | KNUX16 | 0410L-12 | 2025 | 16 | 1 |

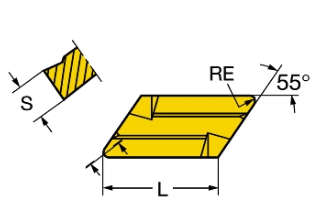

302230 - Indexable insert KNUX T-MAX
Single-sided, 55°, left.
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: fiishing/rough machining of steel/cast steel
| Mã đặt hàng | Model | Lớp mạ | l | r | s |
| mm | mm | mm | |||
| 302230.0150 | KNUX16 | 0405L-11 | 4225 | 16 | 0.5 |
| 302230.0151 | KNUX16 | 0405L-11 | 4325 | 16 | 0.5 |
| 302230.0200 | KNUX16 | 0405L-11 | 2025 | 16 | 0.5 |
| 302230.0350 | KNUX16 | 0405L-12 | 4225 | 16 | 0.5 |
| 302230.0351 | KNUX16 | 0405L-12 | 4325 | 16 | 0.5 |
| 302230.0450 | KNUX16 | 0410L-11 | 4225 | 16 | 1 |
| 302230.0451 | KNUX16 | 0410L-11 | 4325 | 16 | 1 |
| 302230.0500 | KNUX16 | 0410L-11 | 2025 | 16 | 1 |
| 302230.0650 | KNUX16 | 0410L-12 | 4225 | 16 | 1 |
| 302230.0651 | KNUX16 | 0410L-12 | 4325 | 16 | 1 |
| 302230.0700 | KNUX16 | 0410L-12 | 2025 | 16 | 1 |
302230 - Indexable insert KNUX T-MAX
Single-sided, 55°, left.
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: fiishing/rough machining of steel/cast steel
