| Mã đặt hàng | Model | Lớp mạ | l | r | s |
| 302220.0250 | KNUX160405R-11 | 4225 | 16 | 0.5 | 4.76 |
| 302220.0251 | KNUX160405R-11 | 4325 | 16 | 0.5 | 4.76 |
| 302220.0300 | KNUX160405R-11 | 2025 | 16 | 0.5 | 4.76 |
| 302220.0550 | KNUX160405R-12 | 4225 | 16 | 0.5 | 4.76 |
| 302220.0551 | KNUX160405R-12 | 4325 | 16 | 0.5 | 4.76 |
| 302220.0600 | KNUX160405R-12 | 2025 | 16 | 0.5 | 4.76 |
| 302220.0950 | KNUX160410R-11 | 4225 | 16 | 1 | 4.76 |
| 302220.0951 | KNUX160410R-11 | 4325 | 16 | 1 | 4.76 |
| 302220.1000 | KNUX160410R-11 | 2025 | 16 | 1 | 4.76 |
| 302220.1250 | KNUX160410R-12 | 4225 | 16 | 1 | 4.76 |
| 302220.1251 | KNUX160410R-12 | 4325 | 16 | 1 | 4.76 |
| 302220.1300 | KNUX160410R-12 | 2025 | 16 | 1 | 4.76 |

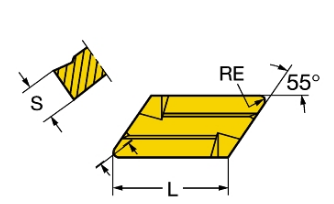

302220 - Indexable insert KNUX T-MAX
Single-sided, 55°, right.
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: fiishing/rough machining of steel/cast steel
| Mã đặt hàng | Model | Lớp mạ | l | r | s |
| 302220.0250 | KNUX160405R-11 | 4225 | 16 | 0.5 | 4.76 |
| 302220.0251 | KNUX160405R-11 | 4325 | 16 | 0.5 | 4.76 |
| 302220.0300 | KNUX160405R-11 | 2025 | 16 | 0.5 | 4.76 |
| 302220.0550 | KNUX160405R-12 | 4225 | 16 | 0.5 | 4.76 |
| 302220.0551 | KNUX160405R-12 | 4325 | 16 | 0.5 | 4.76 |
| 302220.0600 | KNUX160405R-12 | 2025 | 16 | 0.5 | 4.76 |
| 302220.0950 | KNUX160410R-11 | 4225 | 16 | 1 | 4.76 |
| 302220.0951 | KNUX160410R-11 | 4325 | 16 | 1 | 4.76 |
| 302220.1000 | KNUX160410R-11 | 2025 | 16 | 1 | 4.76 |
| 302220.1250 | KNUX160410R-12 | 4225 | 16 | 1 | 4.76 |
| 302220.1251 | KNUX160410R-12 | 4325 | 16 | 1 | 4.76 |
| 302220.1300 | KNUX160410R-12 | 2025 | 16 | 1 | 4.76 |
302220 - Indexable insert KNUX T-MAX
Single-sided, 55°, right.
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: fiishing/rough machining of steel/cast steel
