| Mã đặt hàng | Model | Lớp mạ | l | r | s |
| mm | mm | mm | |||
| 302240.0150 | KNMX160405R-71 | 4225 | 16 | 0.5 | 4.76 |
| 302240.0151 | KNMX160405R-71 | 4325 | 16 | 0.5 | 4.76 |
| 302240.0200 | KNMX160405R-71 | 2025 | 16 | 0.5 | 4.76 |
| 302240.0351 | KNMX160410R-71 | 4325 | 16 | 1 | 4.76 |
| 302240.0400 | KNMX160410R-71 | 2025 | 16 | 1 | 4.76 |

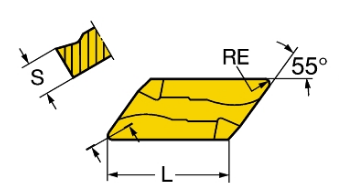

302240 - Indexable insert KNMX T-MAX
Single-sided, 55°, right.
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: pre-fiishing/rough machining of steel/cast steel
| Mã đặt hàng | Model | Lớp mạ | l | r | s |
| mm | mm | mm | |||
| 302240.0150 | KNMX160405R-71 | 4225 | 16 | 0.5 | 4.76 |
| 302240.0151 | KNMX160405R-71 | 4325 | 16 | 0.5 | 4.76 |
| 302240.0200 | KNMX160405R-71 | 2025 | 16 | 0.5 | 4.76 |
| 302240.0351 | KNMX160410R-71 | 4325 | 16 | 1 | 4.76 |
| 302240.0400 | KNMX160410R-71 | 2025 | 16 | 1 | 4.76 |
302240 - Indexable insert KNMX T-MAX
Single-sided, 55°, right.
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: pre-fiishing/rough machining of steel/cast steel
