| Mã đặt hàng | Model | Lớp mạ | iC | l | r | s |
| mm | mm | mm | mm | |||
| 302040.0151 | CNMM120408-PR | 4325 | 12.7 | 12 | 0.8 | 4.76 |
| 302040.0250 | CNMM120408-PR | 4235 | 12.7 | 12 | 0.8 | 4.76 |
| 302040.0351 | CNMM120412-PR | 4325 | 12.7 | 12 | 1.2 | 4.76 |
| 302040.0450 | CNMM120412-PR | 4235 | 12.7 | 12 | 1.2 | 4.76 |
| 302040.1001 | CNMM160612-PR | 4325 | 16 | 16 | 1.2 | 6.35 |
| 302040.1500 | CNMM160612-MR | 2025 | 16 | 16 | 1.2 | 6.35 |
| 302040.1600 | CNMM190624-QR | 4235 | 19 | 19.34 | 2.38 | 6.35 |

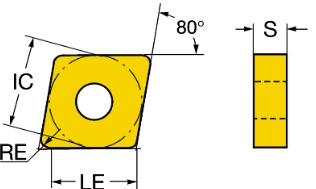

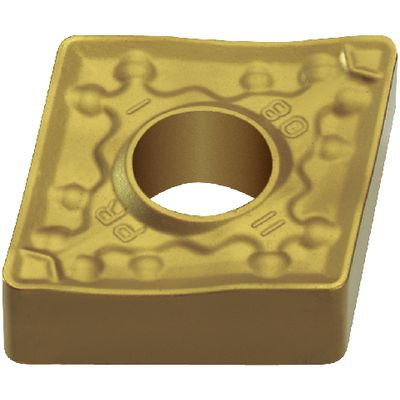

302040 - Indexable insert CNMM T-MAX P
Single-sided, rhombic 80°.
Geometries
• P (steel), M (stainless), K (cast iron), N (non-ferrous metals), S (superalloys), H (hard)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 2025: pre-fiishing/rough machining of stainless steel
• 4225: fiishing/rough machining of steel/cast steel
• 4235: rough machining of steel/cast steel
