Mảnh cắt, chíp tiện CNMG SANDVIK - # 302020

Thông tin sản phẩm

Mã đặt hàng	Model	Lớp mạ	iC	l	r	s
			mm	mm	mm	mm
302020.0150	CNMG120404-WF	4215	12.7	12	0.4	4.76
302020.0200	CNMG120404-WF	2015	12.7	12	0.4	4.76
302020.0351	CNMG120408-WF	4315	12.7	12	0.8	4.76
302020.0400	CNMG120408-WF	2015	12.7	12	0.8	4.76
302020.0550	CNMG120408-WM	4215	12.7	12	0.8	4.76
302020.0650	CNMG120408-WM	4225	12.7	12	0.8	4.76
302020.0700	CNMG120408-WM	2015	12.7	12	0.8	4.76
302020.0850	CNMG120412-WM	4225	12.7	12	1.2	4.76

302020 - Indexable insert CNMG-Wiper T-MAX P

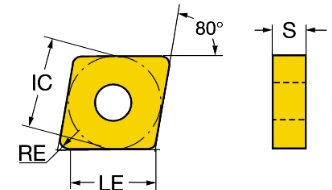

Double-sided, rhombic 80°
Geometries
• W (wiper, perfect surfaces)
• F (fiish machining), M (intermediate machining), R (rough machining)
Types
• 2015: fiish machining and light rough machining of stainless steel
• 4215: fiishing/rough machining of steel/cast steel
• 4225: fiishing/rough machining of steel/cast steel
Appropriate tool holders:
300000 Tool holder PCLNR/L T-MAX P
301000 Boring bar T-MAX P PCLNR

Catalog

Dowload catalog

Xem thêm Thu gọn

Mảnh cắt, chíp tiện CNMG SANDVIK - # 302020

Thương hiệu: SANDVIK

Liên hệ
