| Mã đặt hàng | Model | Lớp mạ | iC | l | la | r | s |
| mm | mm | mm | mm | mm | |||
| 302300.0150 | CNGA120404S01030A | 7015 | 12.7 | 12 | 2.8 | 0.4 | 4.76 |
| 302300.0250 | CNGA120408S01030A | 7015 | 12.7 | 12 | 2.7 | 0.8 | 4.76 |
| 302300.0350 | CNGA120412S01030A | 7015 | 12.7 | 12 | 2.7 | 1.2 | 4.76 |

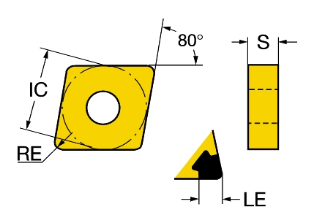

302300 - Indexable insert CNGA-CBN T-MAX P
Double-sided, rhombic 80°.
Types
• 7015: High-performance grade with high cutting speeds for hardened steel
Appropriate tool holders:
300000 Tool holder PCLNR/L T-MAX P
301000 Boring bar T-MAX P PCLNR
| Mã đặt hàng | Model | Lớp mạ | iC | l | la | r | s |
| mm | mm | mm | mm | mm | |||
| 302300.0150 | CNGA120404S01030A | 7015 | 12.7 | 12 | 2.8 | 0.4 | 4.76 |
| 302300.0250 | CNGA120408S01030A | 7015 | 12.7 | 12 | 2.7 | 0.8 | 4.76 |
| 302300.0350 | CNGA120412S01030A | 7015 | 12.7 | 12 | 2.7 | 1.2 | 4.76 |
302300 - Indexable insert CNGA-CBN T-MAX P
Double-sided, rhombic 80°.
Types
• 7015: High-performance grade with high cutting speeds for hardened steel
Appropriate tool holders:
300000 Tool holder PCLNR/L T-MAX P
301000 Boring bar T-MAX P PCLNR
