| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Lettering | Clamping shaft |
| mm | mm | N | µm | ||||
| 123630.0100 | Millimess1002 | ±0.025 | 0.0005 | 1 | 0.6 | 25...0...25 | Ø8h6 |
| 123630.0200 | Millimess1003 | ±0.050 | 0.001 | 1 | 1.2 | 50...0...50 | Ø8h6 |
| 123630.0300 | Millimess1003XL | ±0.130 | 0.002 | 1 | 2.4 | 130...0...130 | Ø8h6 |
| 123630.0400 | Millimess1004 | ±0.130 | 0.005 | 1 | 4 | 130...0...130 | Ø8h6 |
| 123630.0500 | Millimess1000A | ±0.120 | 0.001 | 3.5 | 2 | 120...0...120 | Ø28h6 |

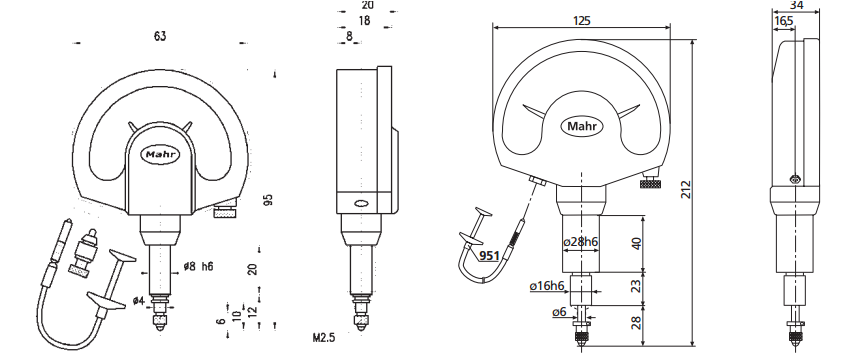

123630 - Analogue comparator MAHR Millimess
Very well-suited as comparative measuring instrument for checking series production and one-offparts.
Version:
123630.0500: with extra large scale
Features:
Constant measuring force
Precision ball sleeve for measuring pin
Insensitive to lateral forces
Adjustable tolerance marks
Blockable fie adjustment
Exchangeable measuring insert M2.5
Package contents:
Delivered in transport packaging.
Appropriate accessories:
Measuring inserts 124008; 124010
Accessories 123650
