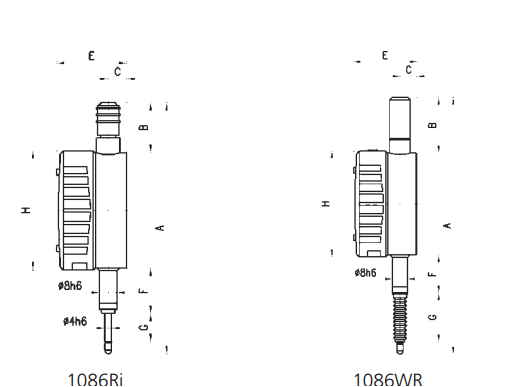

| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số | A | B | C | E | F | G | H |
| mm | N | µm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 122110.0020 | 1086R | 12.5 | 0.01 | 0.65...0.90 | 20 | IP42 | 11 | 126.3 | 25.8 | 9 | 35 | 23 | 13.5 | 60.5 |
| 122110.0040 | 1086R | 25 | 0.01 | 0.65...1.15 | 20 | IP42 | 11 | 153.4 | 36.1 | 9 | 35 | 26.8 | 26.5 | 60.5 |
| 122110.0060 | 1086R | 50 | 0.01 | 1.25...2.70 | 20 | IP42 | 11 | 267.3 | 111.3 | 9 | 35 | 40 | 52 | 60.5 |
| 122110.0080 | 1086R | 100 | 0.01 | 1.6...3.50 | 20 | IP42 | 11 | 420.3 | 162.3 | 9 | 35 | 91 | 103 | 60.5 |
| 122110.0126 | 1086R | 12.5 | 5E-04 | 0.65...0.9 | 5 | IP42 | 11 | 126.3 | 25.8 | 9 | 35 | 21 | 13.5 | 60.5 |
| 122110.0151 | 1086R | 25 | 5E-04 | 0.65...1.15 | 5 | IP42 | 11 | 153.4 | 36.1 | 9 | 35 | 26.8 | 26.5 | 60.5 |
| 122110.0176 | 1086R | 50 | 5E-04 | 1.25...2.7 | 8 | IP42 | 11 | 267.3 | 111.3 | 9 | 35 | 40 | 52 | 60.5 |
| 122110.0200 | 1086R | 100 | 0.005 | 1.6...3.50 | 9 | IP42 | 11 | 420.3 | 162.3 | 9 | 35 | 91 | 103 | 60.5 |
| 122110.0201 | 1086R | 100 | 5E-04 | 1.6...3.5 | 9 | IP42 | 11 | 420.3 | 162.3 | 9 | 35 | 91 | 103 | 60.5 |
| 122110.0626 | 1086WR | 12.5 | 5E-04 | 0.65...1.4 | 5 | IP54 | 11 | 144.3 | 30.8 | 9 | 35 | 21 | 28.5 | 60.5 |
| 122110.0651 | 1086WR | 25 | 5E-04 | 1...2.25 | 5 | IP54 | 11 | 193.2 | 50.4 | 9 | 35 | 28.8 | 50 | 60.5 |

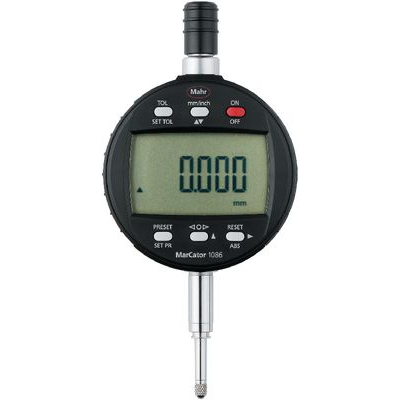

122110 - Dial gauge, digital MAHR
Version with high-contrast LCD display and integrated tolerance display. Thanks to reference system, immediately ready to use on activation.
Features:
LCD display 280° rotatable
Conversion mm/inch
Reversible count direction
Measuring modes ABS / REL
RESET (setting display to zero)
PRESET (fied value setting)
TOL (tolerance input)
Multiplication factor
Auto-OFF (selectable)
LOCK function
Data output MarConnect
Package contents:
Delivered in transport packaging.
Appropriate batteries:
1 pieces 155050.1501 - CR2450 / 3.0 V (included in scope of delivery).
Appropriate accessories:
Signal lines 109275 /.0200 /.0300 /.1000
Measuring inserts 124008; 124010
Accessories 122150
