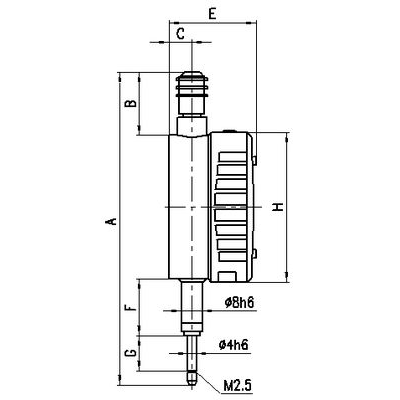

| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số | A | B | C | E | F | G | H |
| mm | N | µm | mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 122120.0121 | 1087R | 12.5 | 0.0005 | 0.65...0.9 | 5 | IP42 | 8.5 | 126.3 | 25.8 | 9 | 35 | 23 | 13.5 | 60.5 |
| 122120.0141 | 1087R | 25 | 0.0005 | 0.65...1.15 | 5 | IP42 | 8.5 | 153.4 | 36.1 | 9 | 35 | 26.8 | 26.5 | 60.5 |
| 122120.0150 | 1087Ri | 12.5 | 0.0005 | 0.65...1.1 | 5 | IP42 | 8.5 | 131 | 30.5 | 9 | 35 | 23 | 13.5 | 60.5 |
| 122120.0160 | 1087Ri | 25 | 0.0005 | 0.65...1.15 | 5 | IP42 | 8.5 | 153.4 | 36.1 | 9 | 35 | 26.8 | 26.5 | 60.5 |
| 122120.0170 | 1087BR | 12.5 | 0.0005 | 0.65...0.9 | 5 | IP42 | 8.5 | 126.3 | 25.8 | 9 | 35 | 23 | 13.5 | 60.5 |
| 122120.0180 | 1087BRi | 12.5 | 0.0005 | 0.65...0.9 | 5 | IP42 | 8.5 | 126.3 | 25.8 | 9 | 35 | 23 | 13.5 | 60.5 |
122120 - Dial gauge, digital MAHR
Dial gauge with additional analog display. Extremely well suited for measurements in bore holes(with 2-point internal gauge) or for run-out and fltness inspections.
Designs:
122120.0121 ...122120.0160: TIR (MAX-MIN) function - for run-out and fltness inspection
122120.0170...122120.0180: START/STOP function - for fiding the reversal point (with 2-point
internal gauge)
Features:
Display rotatable by 280°
Conversion mm/inch
Reversible count direction
RESET (setting display to zero)
PRESET (fied value setting)
TOL (tolerance input)
Data output MarConnect - all types
Data output MarConnect (integrated wireless) - Type 1087 Ri/BRi
Package contents:
Delivered in transport packaging.
Appropriate batteries:
Appropriate accessories:
Signal lines 109275 /.0200 /.0300 /.1000
Wireless receiver (i-Stick) 109275.2500
Measuring inserts 124008; 124010
Accessories 122150
