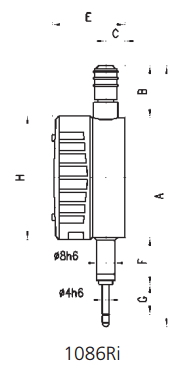

| Mã đặt hàng | Kiểu | Dải đo | Độ phân giải | Áp lực đo | Độ chính xác | Tiêu chuẩn chống nước | Chiều cao số | A | B | C | E | F | G | H |
| mm | N |
µm |
mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 122115.0100 | 1086Ri | 12.50 | 0.01 | 0.65...0.90 | 20.00 | IP42 | 11.00 | 126.30 | 25.80 | 9.00 | 35.00 | 23.00 | 13.50 | 60.50 |
| 122115.0201 | 1086Ri | 12.50 | 0.00 | 0.65...0.9 | 5.00 | IP42 | 11.00 | 126.30 | 25.80 | 9.00 | 35.00 | 23.00 | 13.50 | 60.50 |
| 122115.0300 | 1086Ri | 25.00 | 0.01 | 0.65...1.15 | 20.00 | IP42 | 11.00 | 153.40 | 36.10 | 9.00 | 35.00 | 26.80 | 26.50 | 60.50 |
| 122115.0401 | 1086Ri | 25.00 | 0.00 | 0.65...1.15 | 5.00 | IP42 | 11.00 | 153.40 | 36.10 | 9.00 | 35.00 | 26.80 | 26.50 | 60.50 |
| 122115.0601 | 1086Ri | 50.00 | 0.00 | 1.25...2.7 | 8.00 | IP42 | 11.00 | 267.30 | 111.30 | 9.00 | 35.00 | 40.00 | 52.00 | 60.50 |
| 122115.0801 | 1086Ri | 100.00 | 0.00 | 1.6...3.5 | 9.00 | IP42 | 11.00 | 420.30 | 162.30 | 9.00 | 35.00 | 91.00 | 103.00 | 60.50 |
| 122115.9000 | 1086Ri | 12.50 | 0.01 | 0.65...0.90 | 5.00 | IP42 | 11.00 | 126.30 | 25.80 | 9.00 | 35.00 | 23.00 | 13.50 | 60.50 |
122115 - Dial gauge, digital MAHR
Version with large LCD display and integrated tolerance display. Absolute function enables zero setting in any position without losing the relation to the reference point.
Features:
Display rotatable by 280°
Conversion mm/inch
Reversible count direction
RESET (setting display to zero)
PRESET (fied value setting)
LOCK function
Data output MarConnect
Data output MarConnect (integrated wireless)
Package contents:
Delivered in transport packaging.
Appropriate batteries:
Appropriate accessories:
Signal lines 109275 /.0200 /.0300 /.1000
Wireless receiver (i-Stick) 109275.2500
Measuring inserts 124008; 124010
Accessories 122150
