| Mã đặt hàng | D | dm | l2 | l3 | Ip | lc | Số Me | ap |
| mm | mm | mm | mm | mm | mm | mm | ||
| 233000.0100 | 10 | 10 | 55 | 16 | 17 | 38 | 2 | 5 |
| 233000.0200 | 12 | 12 | 60 | 17 | 18 | 42 | 3 | 5 |
| 233000.0300 | 16 | 16 | 90 | 19 | 42 | 70 | 4 | 5 |
| 233000.0400 | 20 | 20 | 85 | 20 | 35 | 65 | 5 | 5 |
| 233000.0500 | 25 | 20 | 90 | 20 | 40 | 70 | 7 | 5 |

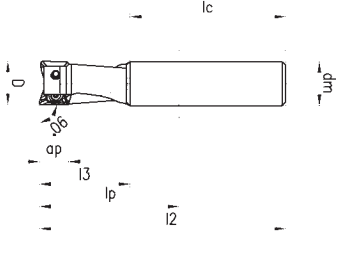

233000 - Square-shoulder/slot cutter SECO
Cylindrical shank without flat, with internal cooling.
Application
For ramping, helical interpolation, plunge cutting.
Indexable inserts: 233920 (XOMX 0602)
