| Mã đặt hàng | D | d | A | L | Số Me | ap | Turningplates |
| mm | mm | mm | mm | mm | |||
| 240200.0100 | 11 | 12 | 18 | 80 | 2 | 4 | SPLT0603... |
| 240200.0200 | 16 | 16 | 28.8 | 100 | 2 | 6 | SCMT09T3... |
| 240200.0300 | 28 | 25 | 40.3 | 100 | 3 | 6 | SCMT09T3... |

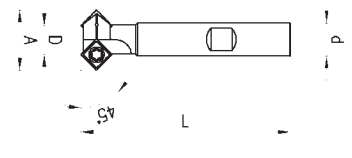

240200 - Bevel milling cutter FUTURO 45°
straight shank with clamping flat.
For bevelling and deburring on the upper and lower surface of a workpiece. Can also be used for face milling and V-groove cutting; with internal cooling.
Indexable inserts: 240220
Spare parts: 310990
| Mã đặt hàng | D | d | A | L | Số Me | ap | Turningplates |
| mm | mm | mm | mm | mm | |||
| 240200.0100 | 11 | 12 | 18 | 80 | 2 | 4 | SPLT0603... |
| 240200.0200 | 16 | 16 | 28.8 | 100 | 2 | 6 | SCMT09T3... |
| 240200.0300 | 28 | 25 | 40.3 | 100 | 3 | 6 | SCMT09T3... |
240200 - Bevel milling cutter FUTURO 45°
straight shank with clamping flat.
For bevelling and deburring on the upper and lower surface of a workpiece. Can also be used for face milling and V-groove cutting; with internal cooling.
Indexable inserts: 240220
Spare parts: 310990
