| Mã đặt hàng | D | b | d | H | c | Số Me | ap | ae | Turningplates |
| mm | mm | mm | mm | mm | mm | mm | |||
| 236000.0100 | 63 | 2 | 22 | 1.9 | 32 | 5 | 2.25...2.5 | 15.5 | 150.10-2N../2.5N.. |
| 236000.0200 | 63 | 3 | 22 | 2.4 | 32 | 5 | 3.1 | 15.5 | 150.10-3N.. |
| 236000.0300 | 63 | 4 | 22 | 3.4 | 32 | 5 | 4.1 | 15.5 | 150.10-4N.. |
| 236000.0500 | 80 | 3 | 22 | 2.4 | 40 | 6 | 3.1 | 20 | 150.10-3N.. |
| 236000.0600 | 80 | 4 | 22 | 3.4 | 40 | 6 | 4.1 | 20 | 150.10-4N.. |
| 236000.0800 | 100 | 3 | 27 | 2.4 | 48 | 7 | 3.1 | 29 | 150.10-3N.. |
| 236000.0900 | 100 | 4 | 27 | 3.4 | 48 | 7 | 4.1 | 29 | 150.10-4N.. |
| 236000.1100 | 125 | 3 | 32 | 2.4 | 58 | 9 | 3.1 | 34 | 150.10-3N.. |
| 236000.1200 | 125 | 4 | 32 | 3.4 | 58 | 9 | 4.1 | 34 | 150.10-4N.. |
| 236000.1400 | 160 | 3 | 40 | 2.4 | 80 | 12 | 3.1 | 40 | 150.10-3N.. |
| 236000.1500 | 160 | 4 | 40 | 3.4 | 80 | 12 | 4.1 | 40 | 150.10-4N.. |

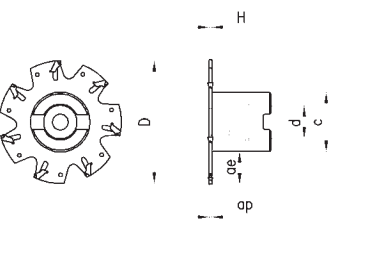

236000 - Disc milling cutter SECO
Three-side milling cutter for groove and slot milling and for sawing, clockwise operation, cutter body made from HSS, normal pitch
| Mã đặt hàng | D | b | d | H | c | Số Me | ap | ae | Turningplates |
| mm | mm | mm | mm | mm | mm | mm | |||
| 236000.0100 | 63 | 2 | 22 | 1.9 | 32 | 5 | 2.25...2.5 | 15.5 | 150.10-2N../2.5N.. |
| 236000.0200 | 63 | 3 | 22 | 2.4 | 32 | 5 | 3.1 | 15.5 | 150.10-3N.. |
| 236000.0300 | 63 | 4 | 22 | 3.4 | 32 | 5 | 4.1 | 15.5 | 150.10-4N.. |
| 236000.0500 | 80 | 3 | 22 | 2.4 | 40 | 6 | 3.1 | 20 | 150.10-3N.. |
| 236000.0600 | 80 | 4 | 22 | 3.4 | 40 | 6 | 4.1 | 20 | 150.10-4N.. |
| 236000.0800 | 100 | 3 | 27 | 2.4 | 48 | 7 | 3.1 | 29 | 150.10-3N.. |
| 236000.0900 | 100 | 4 | 27 | 3.4 | 48 | 7 | 4.1 | 29 | 150.10-4N.. |
| 236000.1100 | 125 | 3 | 32 | 2.4 | 58 | 9 | 3.1 | 34 | 150.10-3N.. |
| 236000.1200 | 125 | 4 | 32 | 3.4 | 58 | 9 | 4.1 | 34 | 150.10-4N.. |
| 236000.1400 | 160 | 3 | 40 | 2.4 | 80 | 12 | 3.1 | 40 | 150.10-3N.. |
| 236000.1500 | 160 | 4 | 40 | 3.4 | 80 | 12 | 4.1 | 40 | 150.10-4N.. |
236000 - Disc milling cutter SECO
Three-side milling cutter for groove and slot milling and for sawing, clockwise operation, cutter body made from HSS, normal pitch
