| Mã đặt hàng | D | d | H | c | K | Số Me | ap | ae | Turningplates |
| mm | mm | mm | mm | mm | mm | mm | |||
| 236200.0100 | 63 | 22 | 50 | 40 | 3 | 6 | 4 | 10.5 | ...1102.. |
| 236200.0200 | 63 | 22 | 50 | 40 | 3 | 6 | 5 | 10.5 | ...1103.. |
| 236200.0300 | 63 | 22 | 50 | 40 | 3 | 6 | 6 | 10.5 | ...1203.. |
| 236200.0400 | 80 | 22 | 50 | 40 | 4 | 8 | 6 | 20 | ...1203.. |
| 236200.0500 | 80 | 22 | 50 | 40 | 4 | 8 | 7/8* | 20 | ...1204../12045.. |
| 236200.0600 | 100 | 27 | 50 | 48 | 6 | 12 | 4 | 24.2 | ...1102.. |
| 236200.0700 | 100 | 27 | 50 | 48 | 5 | 10 | 6 | 24.2 | ...1203.. |
| 236200.0800 | 100 | 27 | 50 | 48 | 5 | 10 | 10 | 24.2 | ...1205.. |
| 236200.0900 | 100 | 27 | 50 | 48 | 5 | 10 | 12 | 24.2 | ...1207.. |

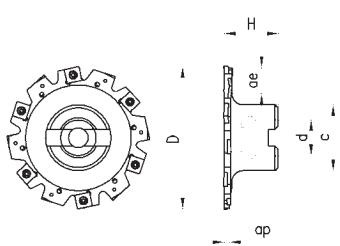

236200 - Disc milling cutter SECO
Three-side milling cutter for groove milling and sawing, clockwise operation as arbour-mounted cutter.
Indexable inserts: 236220, 236230
Spare parts: 238000
Note
* For ap = 7 mm: Indexable insert 335.19-1204.
* For ap = 8 mm: Indexable insert 335.19-12045.
K: Effective number of teeth for feed calculation
