| Mã đặt hàng | d | l2 | l1 | MT | Mã đặt hàng | d | l2 | l1 | MT | Mã đặt hàng | d | l2 | l1 | MT |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||||
| 253370.0100 | 10 | 87 | 168 | 1 | 253370.1500 | 15 | 114 | 212 | 2 | 253370.2900 | 22.5 | 155 | 253 | 2 |
| 253370.0200 | 10.2 | 87 | 168 | 1 | 253370.1600 | 15.5 | 120 | 218 | 2 | 253370.3000 | 23 | 155 | 253 | 2 |
| 253370.0300 | 10.5 | 87 | 168 | 1 | 253370.1700 | 16 | 120 | 218 | 2 | 253370.3100 | 23.5 | 155 | 276 | 3 |
| 253370.0400 | 10.8 | 94 | 175 | 1 | 253370.1800 | 16.5 | 125 | 223 | 2 | 253370.3200 | 24 | 160 | 281 | 3 |
| 253370.0500 | 11 | 94 | 175 | 1 | 253370.1900 | 17 | 125 | 223 | 2 | 253370.3300 | 24.5 | 160 | 281 | 3 |
| 253370.0600 | 11.2 | 94 | 175 | 1 | 253370.2000 | 17.5 | 130 | 228 | 2 | 253370.3400 | 25 | 160 | 281 | 3 |
| 253370.0700 | 11.5 | 94 | 175 | 1 | 253370.2100 | 18 | 130 | 228 | 2 | 253370.3500 | 25.5 | 165 | 286 | 3 |
| 253370.0800 | 11.8 | 94 | 175 | 1 | 253370.2200 | 18.5 | 135 | 233 | 2 | 253370.3600 | 26 | 165 | 286 | 3 |
| 253370.0900 | 12 | 101 | 182 | 1 | 253370.2300 | 19 | 135 | 233 | 2 | 253370.3700 | 26.5 | 165 | 286 | 3 |
| 253370.1000 | 12.5 | 101 | 182 | 1 | 253370.2400 | 20 | 140 | 238 | 2 | 253370.3800 | 27 | 170 | 291 | 3 |
| 253370.1100 | 13 | 101 | 182 | 1 | 253370.2500 | 20.5 | 145 | 243 | 2 | 253370.3900 | 28 | 170 | 291 | 3 |
| 253370.1200 | 13.5 | 108 | 189 | 1 | 253370.2600 | 21 | 145 | 243 | 2 | 253370.4000 | 29 | 175 | 296 | 3 |
| 253370.1300 | 14 | 108 | 189 | 1 | 253370.2700 | 21.5 | 150 | 248 | 2 | 253370.4100 | 30 | 175 | 296 | 3 |
| 253370.1400 | 14.5 | 114 | 212 | 2 | 253370.2800 | 22 | 150 | 248 | 2 |
253370 Morse taper shank drill TITEX

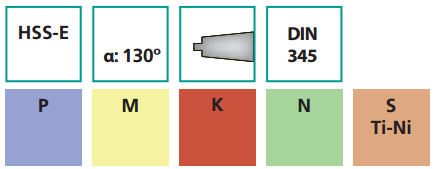

A4247, Type Alpha X-E, HSS-E, up to 23 mm damped, from diameter 23.5 mm polished, DIN 345.
Application
Twist drill for general purpose use with especially good chip formation and extended service life; also suitable for hard-to-cut materials, e.g. steels up to about 1300 N/mm2, including austenitic stainless steels, cast materials over 700 N/mm2, hard bronzes.
| Mã đặt hàng | d | l2 | l1 | MT | Mã đặt hàng | d | l2 | l1 | MT | Mã đặt hàng | d | l2 | l1 | MT |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | ||||||
| 253370.0100 | 10 | 87 | 168 | 1 | 253370.1500 | 15 | 114 | 212 | 2 | 253370.2900 | 22.5 | 155 | 253 | 2 |
| 253370.0200 | 10.2 | 87 | 168 | 1 | 253370.1600 | 15.5 | 120 | 218 | 2 | 253370.3000 | 23 | 155 | 253 | 2 |
| 253370.0300 | 10.5 | 87 | 168 | 1 | 253370.1700 | 16 | 120 | 218 | 2 | 253370.3100 | 23.5 | 155 | 276 | 3 |
| 253370.0400 | 10.8 | 94 | 175 | 1 | 253370.1800 | 16.5 | 125 | 223 | 2 | 253370.3200 | 24 | 160 | 281 | 3 |
| 253370.0500 | 11 | 94 | 175 | 1 | 253370.1900 | 17 | 125 | 223 | 2 | 253370.3300 | 24.5 | 160 | 281 | 3 |
| 253370.0600 | 11.2 | 94 | 175 | 1 | 253370.2000 | 17.5 | 130 | 228 | 2 | 253370.3400 | 25 | 160 | 281 | 3 |
| 253370.0700 | 11.5 | 94 | 175 | 1 | 253370.2100 | 18 | 130 | 228 | 2 | 253370.3500 | 25.5 | 165 | 286 | 3 |
| 253370.0800 | 11.8 | 94 | 175 | 1 | 253370.2200 | 18.5 | 135 | 233 | 2 | 253370.3600 | 26 | 165 | 286 | 3 |
| 253370.0900 | 12 | 101 | 182 | 1 | 253370.2300 | 19 | 135 | 233 | 2 | 253370.3700 | 26.5 | 165 | 286 | 3 |
| 253370.1000 | 12.5 | 101 | 182 | 1 | 253370.2400 | 20 | 140 | 238 | 2 | 253370.3800 | 27 | 170 | 291 | 3 |
| 253370.1100 | 13 | 101 | 182 | 1 | 253370.2500 | 20.5 | 145 | 243 | 2 | 253370.3900 | 28 | 170 | 291 | 3 |
| 253370.1200 | 13.5 | 108 | 189 | 1 | 253370.2600 | 21 | 145 | 243 | 2 | 253370.4000 | 29 | 175 | 296 | 3 |
| 253370.1300 | 14 | 108 | 189 | 1 | 253370.2700 | 21.5 | 150 | 248 | 2 | 253370.4100 | 30 | 175 | 296 | 3 |
| 253370.1400 | 14.5 | 114 | 212 | 2 | 253370.2800 | 22 | 150 | 248 | 2 |
253370 Morse taper shank drill TITEX
A4247, Type Alpha X-E, HSS-E, up to 23 mm damped, from diameter 23.5 mm polished, DIN 345.
Application
Twist drill for general purpose use with especially good chip formation and extended service life; also suitable for hard-to-cut materials, e.g. steels up to about 1300 N/mm2, including austenitic stainless steels, cast materials over 700 N/mm2, hard bronzes.
