| Mã đặt hàng | Kiểu | Chuôi côn MT | D | E | FR max. | P | Khối lượng phôi max. |
| mm | mm | daN | mm | kg | |||
| 344060.0100 | 1ST | 1 | 12 | 17 | 43 | 6,5 | 85 |
| 344060.0200 | 2ST | 2 | 16 | 22 | 90 | 8 | 180 |
| 344060.0400 | 3SM | 3 | 16 | 22 | 155 | 8 | 310 |
| 344060.0500 | 3ST | 3 | 24 | 34 | 220 | 10 | 440 |
| 344060.0700 | 4SM | 4 | 24 | 34 | 260 | 10 | 520 |
| 344060.0800 | 4ST | 4 | 30 | 40 | 440 | 14 | 880 |
| 344060.1000 | 5SM | 5 | 30 | 40 | 525 | 14 | 1050 |

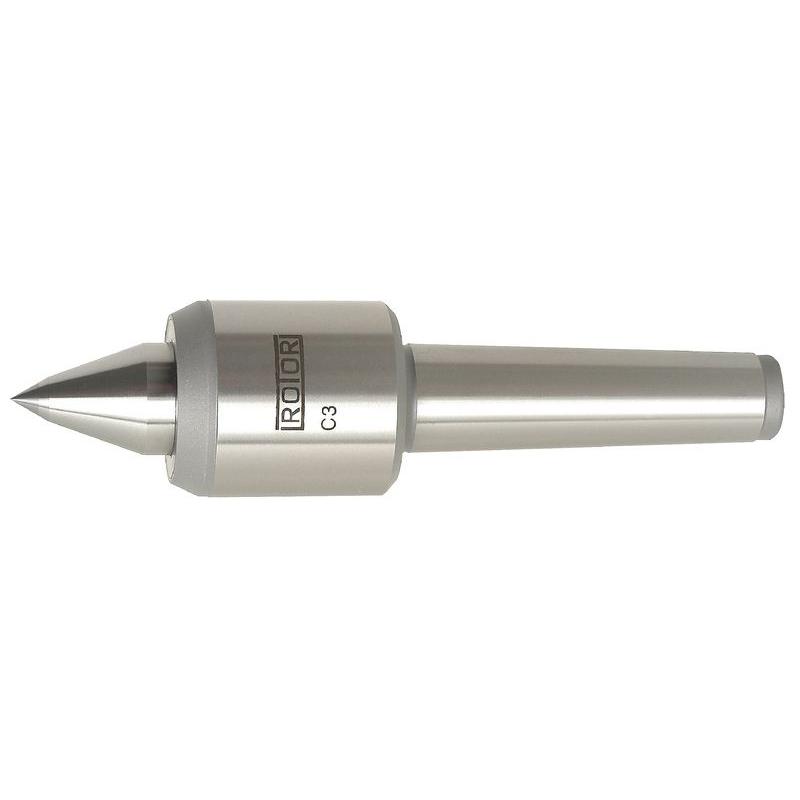

344060 - Revolving centre point ROTOR
Main-line, Type VH extended point 60°
Extremely precise, robust design, built for demanding use around the clock. With roller bearings and overpressure protection. Long life. Sealed against coolant and dirt.
Maintenance All lathe centres are lubricated for life during manufacturing. Reconditioning in the
factory is possible.
Designs:
SM: Small (SM) with small body diameter for light work and higher turning speeds.
ST: Standard (ST) for normal use
