| Mã đặt hàng | Kiểu | Chuôi côn MT | D | A | B | C | d | E | FA max. | n max. | Khối lượng phôi max. |
| mm | mm | mm | mm | mm | mm | daN | min-1 | kg | |||
| 344320.0100 | CV-3 | 3 | 57 | 32 | 48 | 85.5 | 22 | 12 | 1000 | 10000 | 700 |
| 344320.0200 | CV-4 | 4 | 70 | 46 | 60 | 108 | 30 | 15 | 1750 | 8000 | 1300 |
| 344320.0300 | CV-5 | 5 | 96 | 72 | 77 | 135 | 45 | 18.5 | 3000 | 6000 | 1900 |

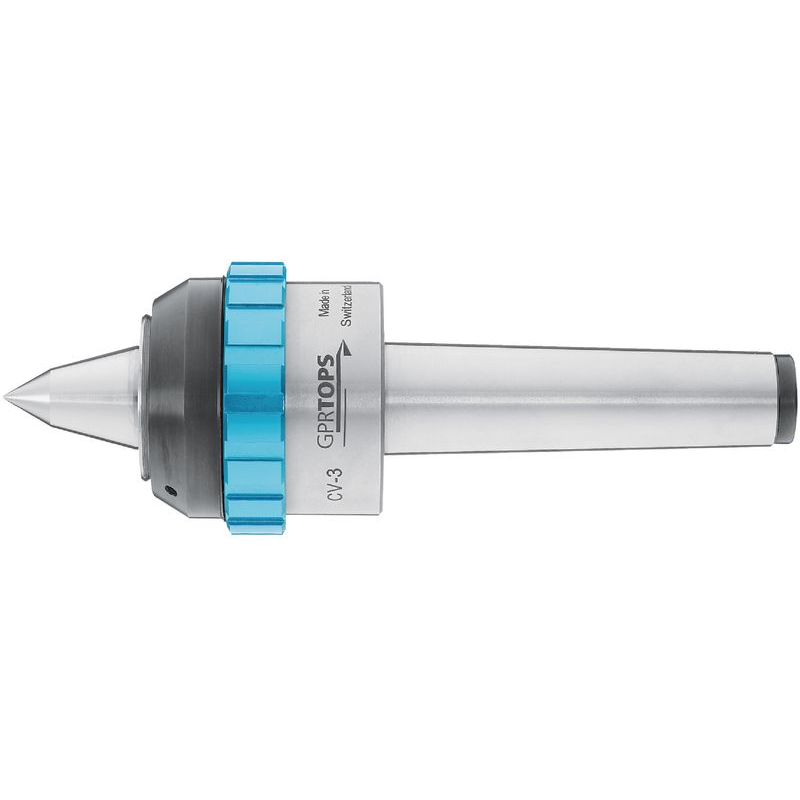

344320 - Revolving centre point GPR-TOPS
Type CV, 60°
With extended point for higher speeds up to over 10,000 min-1, suitable for CNC and copy lathes with hydraulic tailstocks. Concentricity precision 0.005 mm or better.
| Mã đặt hàng | Kiểu | Chuôi côn MT | D | A | B | C | d | E | FA max. | n max. | Khối lượng phôi max. |
| mm | mm | mm | mm | mm | mm | daN | min-1 | kg | |||
| 344320.0100 | CV-3 | 3 | 57 | 32 | 48 | 85.5 | 22 | 12 | 1000 | 10000 | 700 |
| 344320.0200 | CV-4 | 4 | 70 | 46 | 60 | 108 | 30 | 15 | 1750 | 8000 | 1300 |
| 344320.0300 | CV-5 | 5 | 96 | 72 | 77 | 135 | 45 | 18.5 | 3000 | 6000 | 1900 |
344320 - Revolving centre point GPR-TOPS
Type CV, 60°
With extended point for higher speeds up to over 10,000 min-1, suitable for CNC and copy lathes with hydraulic tailstocks. Concentricity precision 0.005 mm or better.
