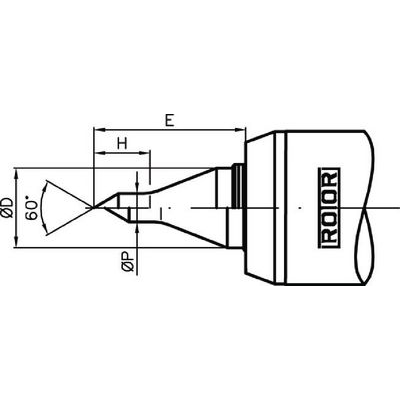

| Mã đặt hàng | Kiểu | D | E | P | H |
| mm | mm | mm | mm | ||
| 344270.0100 | MK2 | 14 | 28 | 5.8 | 12 |
| 344270.0200 | MK3 | 22 | 43 | 7.8 | 16 |
| 344270.0300 | MK4 | 28 | 51 | 9.8 | 19 |
| 344270.0400 | MK5 | 38 | 62 | 11.8 | 22 |
| 344270.0500 | zyl.Ø20 | 14 | 28 | 5.8 | 12 |
| 344270.0600 | zyl.Ø25 | 22 | 43 | 7.8 | 16 |
| 344270.0700 | zyl.Ø1“ | 22 | 43 | 7.8 | 16 |
| 344270.0800 | zyl.Ø32 | 28 | 51 | 9.8 | 19 |
| 344270.0900 | VDI20 | 14 | 28 | 5.8 | 12 |
| 344270.1000 | VDI30 | 22 | 43 | 7.8 | 16 |
| 344270.1100 | VDI40 | 28 | 51 | 9.8 | 19 |
| 344270.1200 | VDI50 | 38 | 62 | 11.8 | 22 |

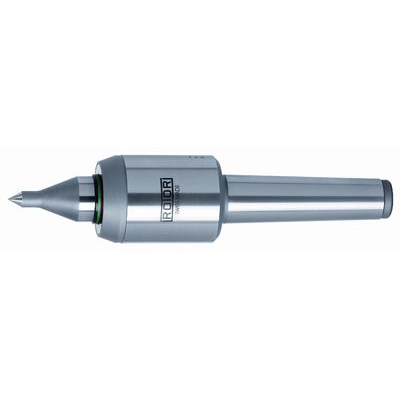

344270 Revolving centre point ROTOR
Main-Line, Type DA-L
With slim point 60°, pressure indicator and large spring deflction.
Application
A pressure indicator with different colour bands enables rapid setting and monitoring of the optimum pressure. With fied positioning, length tolerances and different centre bores are compensated for by deflction in a spring. Light workpieces can be clamped very precisely as a result.
Maintenance
All ROTOR lathe centres are lubricated for life during manufacturing. Reconditioning in the factory
is possible.
| Mã đặt hàng | Kiểu | D | E | P | H |
| mm | mm | mm | mm | ||
| 344270.0100 | MK2 | 14 | 28 | 5.8 | 12 |
| 344270.0200 | MK3 | 22 | 43 | 7.8 | 16 |
| 344270.0300 | MK4 | 28 | 51 | 9.8 | 19 |
| 344270.0400 | MK5 | 38 | 62 | 11.8 | 22 |
| 344270.0500 | zyl.Ø20 | 14 | 28 | 5.8 | 12 |
| 344270.0600 | zyl.Ø25 | 22 | 43 | 7.8 | 16 |
| 344270.0700 | zyl.Ø1“ | 22 | 43 | 7.8 | 16 |
| 344270.0800 | zyl.Ø32 | 28 | 51 | 9.8 | 19 |
| 344270.0900 | VDI20 | 14 | 28 | 5.8 | 12 |
| 344270.1000 | VDI30 | 22 | 43 | 7.8 | 16 |
| 344270.1100 | VDI40 | 28 | 51 | 9.8 | 19 |
| 344270.1200 | VDI50 | 38 | 62 | 11.8 | 22 |
344270 Revolving centre point ROTOR
Main-Line, Type DA-L
With slim point 60°, pressure indicator and large spring deflction.
Application
A pressure indicator with different colour bands enables rapid setting and monitoring of the optimum pressure. With fied positioning, length tolerances and different centre bores are compensated for by deflction in a spring. Light workpieces can be clamped very precisely as a result.
Maintenance
All ROTOR lathe centres are lubricated for life during manufacturing. Reconditioning in the factory
is possible.
