| Mã đặt hàng | Kiểu | Chuôi côn MT | D | A | B | C | E | FA max. | FR max. | n max. | P | Khối lượng phôi max. |
| mm | mm | mm | mm | mm | daN | daN | min-1 | mm | kg | |||
| 344040.0100 | 1ST | 1 | 12 | 103 | 24 | 30 | 15 | 200 | 50 | 8000 | 7 | 100 |
| 344040.0200 | 2ST | 2 | 16 | 127 | 34 | 38 | 20 | 600 | 110 | 7000 | 7 | 220 |
| 344040.0400 | 3SM | 3 | 16 | 143 | 34 | 38 | 20 | 600 | 200 | 7000 | 7 | 400 |
| 344040.0500 | 3ST | 3 | 24 | 163 | 42 | 48 | 29 | 700 | 255 | 5800 | 11 | 510 |
| 344040.0700 | 4SM | 4 | 24 | 185 | 42 | 48 | 29 | 700 | 350 | 5800 | 11 | 700 |
| 344040.0800 | 4ST | 4 | 30 | 194 | 53 | 53 | 33 | 1100 | 550 | 4800 | 14 | 1100 |
| 344040.1000 | 5SM | 5 | 30 | 223 | 53 | 53 | 33 | 1100 | 710 | 4500 | 14 | 1420 |
| 344040.1100 | 5ST | 5 | 40 | 239 | 64 | 57 | 45 | 1800 | 1050 | 4000 | 18 | 2100 |

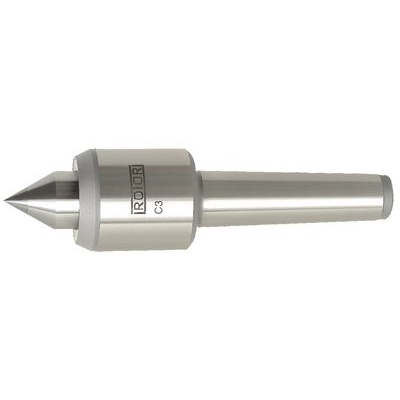

344040 - Revolving centre point ROTOR
Main-Line, Type NH Standard point 60°, with carbide insert.
Extremely precise, robust design, built for demanding use around the clock. With roller bearings and overpressure protection. Long life. Sealed against coolant and dirt.
Maintenance All lathe centres are lubricated for life during manufacturing. Reconditioning in the
factory is possible.
Designs:
SM: Small (SM) with small body diameter for light work and higher turning speeds.
ST: Standard (ST) for normal use
