| Mã đặt hàng | Kiểu | Chuôi côn MT | D | A | B | C | E | FA max. | FR max. | n max. | Khối lượng phôi max. |
| mm | mm | mm | mm | mm | daN | daN | min-1 | kg | |||
| 344000.0100 | 1ST | 1 | 12 | 103 | 24 | 30 | 15 | 200 | 50 | 8000 | 100 |
| 344000.0200 | 2ST | 2 | 16 | 127 | 34 | 38 | 20 | 600 | 110 | 7000 | 220 |
| 344000.0300 | 2SU | 2 | 24 | 146 | 42 | 48 | 29 | 700 | 160 | 5800 | 320 |
| 344000.0400 | 3SM | 3 | 16 | 143 | 34 | 38 | 20 | 600 | 200 | 7000 | 400 |
| 344000.0500 | 3ST | 3 | 24 | 163 | 42 | 48 | 29 | 700 | 255 | 5800 | 510 |
| 344000.0600 | 3SU | 3 | 30 | 171 | 53 | 53 | 33 | 1100 | 350 | 4800 | 700 |
| 344000.0700 | 4SM | 4 | 24 | 185 | 42 | 48 | 29 | 700 | 350 | 5800 | 700 |
| 344000.0800 | 4ST | 4 | 30 | 194 | 53 | 53 | 33 | 1100 | 550 | 4800 | 1100 |
| 344000.0900 | 4SU | 4 | 40 | 211 | 64 | 57 | 45 | 1800 | 900 | 4000 | 1800 |
| 344000.1000 | 5SM | 5 | 30 | 223 | 53 | 53 | 33 | 1100 | 710 | 4500 | 1420 |
| 344000.1100 | 5ST | 5 | 40 | 239 | 64 | 57 | 45 | 1800 | 1050 | 4000 | 2100 |
| 344000.1200 | 5SU | 5 | 50 | 266 | 86 | 73 | 56 | 3000 | 1500 | 2800 | 3000 |
| 344000.1300 | 6ST | 6 | 50 | 318 | 86 | 73 | 56 | 3000 | 2000 | 2800 | 4000 |
| 344000.1400 | 6SU | 6 | 60 | 378 | 126 | 125 | 65 | 7000 | 3000 | 1500 | 6000 |
| 344000.1600 | 80SU | 80 | 80 | 432 | 144 | 150 | 79 | 10000 | 7000 | 1200 | 14000 |
| 344000.1700 | 100ST | 100 | 80 | 445 | 144 | 128 | 79 | 10000 | 7000 | 1200 | 14000 |

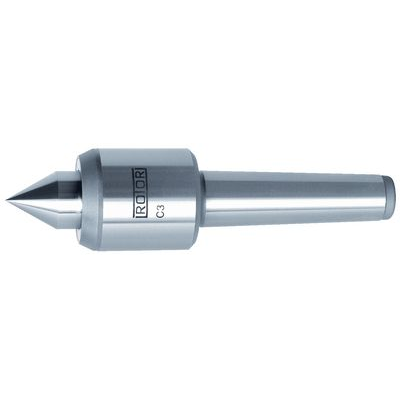

344000 - Revolving centre point ROTOR
Main-Line, Type N
Standard point 60°
The proven range of live centres for lathes and grinders. Extremely precise, robust design, built for demanding use around the clock. With roller bearings and overpressure protection, long life. Sealed against coolant and dirt.
Maintenance
All ROTOR machine centre points are permanently greased in production. Reconditioning in the factory is possible.
Designs:
SM: Small (SM) with small body diameter for light work and higher turning speeds.
ST: Standard (ST) for normal use
SU: Super (SU) for heavy-duty loads

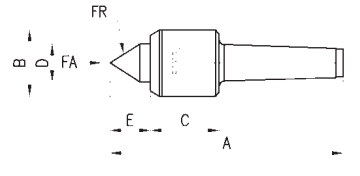

| Mã đặt hàng | Kiểu | Chuôi côn MT | D | A | B | C | E | FA max. | FR max. | n max. | Khối lượng phôi max. |
| mm | mm | mm | mm | mm | daN | daN | min-1 | kg | |||
| 344000.0100 | 1ST | 1 | 12 | 103 | 24 | 30 | 15 | 200 | 50 | 8000 | 100 |
| 344000.0200 | 2ST | 2 | 16 | 127 | 34 | 38 | 20 | 600 | 110 | 7000 | 220 |
| 344000.0300 | 2SU | 2 | 24 | 146 | 42 | 48 | 29 | 700 | 160 | 5800 | 320 |
| 344000.0400 | 3SM | 3 | 16 | 143 | 34 | 38 | 20 | 600 | 200 | 7000 | 400 |
| 344000.0500 | 3ST | 3 | 24 | 163 | 42 | 48 | 29 | 700 | 255 | 5800 | 510 |
| 344000.0600 | 3SU | 3 | 30 | 171 | 53 | 53 | 33 | 1100 | 350 | 4800 | 700 |
| 344000.0700 | 4SM | 4 | 24 | 185 | 42 | 48 | 29 | 700 | 350 | 5800 | 700 |
| 344000.0800 | 4ST | 4 | 30 | 194 | 53 | 53 | 33 | 1100 | 550 | 4800 | 1100 |
| 344000.0900 | 4SU | 4 | 40 | 211 | 64 | 57 | 45 | 1800 | 900 | 4000 | 1800 |
| 344000.1000 | 5SM | 5 | 30 | 223 | 53 | 53 | 33 | 1100 | 710 | 4500 | 1420 |
| 344000.1100 | 5ST | 5 | 40 | 239 | 64 | 57 | 45 | 1800 | 1050 | 4000 | 2100 |
| 344000.1200 | 5SU | 5 | 50 | 266 | 86 | 73 | 56 | 3000 | 1500 | 2800 | 3000 |
| 344000.1300 | 6ST | 6 | 50 | 318 | 86 | 73 | 56 | 3000 | 2000 | 2800 | 4000 |
| 344000.1400 | 6SU | 6 | 60 | 378 | 126 | 125 | 65 | 7000 | 3000 | 1500 | 6000 |
| 344000.1600 | 80SU | 80 | 80 | 432 | 144 | 150 | 79 | 10000 | 7000 | 1200 | 14000 |
| 344000.1700 | 100ST | 100 | 80 | 445 | 144 | 128 | 79 | 10000 | 7000 | 1200 | 14000 |
344000 - Revolving centre point ROTOR
Main-Line, Type N
Standard point 60°
The proven range of live centres for lathes and grinders. Extremely precise, robust design, built for demanding use around the clock. With roller bearings and overpressure protection, long life. Sealed against coolant and dirt.
Maintenance
All ROTOR machine centre points are permanently greased in production. Reconditioning in the factory is possible.
Designs:
SM: Small (SM) with small body diameter for light work and higher turning speeds.
ST: Standard (ST) for normal use
SU: Super (SU) for heavy-duty loads
