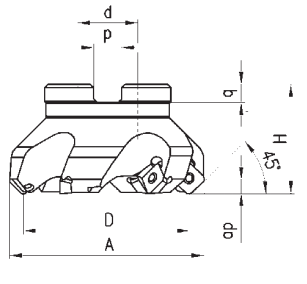

| Mã đặt hàng | D | d | A | H | p | q | Số Me | ap |
| mm | mm | mm | mm | mm | mm | mm | ||
| 232305.0100 | 40 | 22 | 52 | 40 | 10.4 | 6.3 | 3 | 6 |
| 232305.0200 | 50 | 22 | 62 | 40 | 10.4 | 6.3 | 4 | 6 |
| 232305.0300 | 63 | 22 | 75 | 40 | 10.4 | 6.3 | 5 | 6 |
| 232305.0400 | 80 | 27 | 92 | 50 | 12.4 | 7 | 6 | 6 |
| 232305.0500 | 100 | 32 | 112 | 50 | 14.4 | 8 | 7 | 6 |

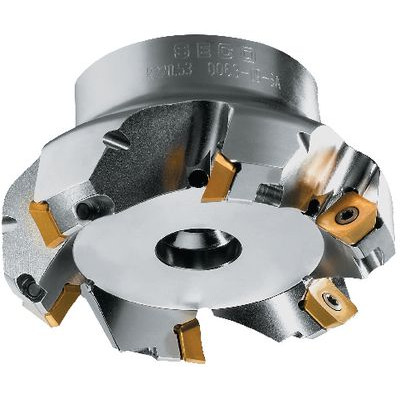

232305 - Face mill SECO Quattromill
Application
These all-purpose, easy-cutting face cutters are specially designed for machining centres with a drive output below 10 kW. The extreme positive rake of the cutters and inserts provide outstanding rates of metal removal, longer life and improved surface quality with low feed rates and shallow cutting depths.
Indexable inserts: 232310
Spare parts: 238000
| Mã đặt hàng | D | d | A | H | p | q | Số Me | ap |
| mm | mm | mm | mm | mm | mm | mm | ||
| 232305.0100 | 40 | 22 | 52 | 40 | 10.4 | 6.3 | 3 | 6 |
| 232305.0200 | 50 | 22 | 62 | 40 | 10.4 | 6.3 | 4 | 6 |
| 232305.0300 | 63 | 22 | 75 | 40 | 10.4 | 6.3 | 5 | 6 |
| 232305.0400 | 80 | 27 | 92 | 50 | 12.4 | 7 | 6 | 6 |
| 232305.0500 | 100 | 32 | 112 | 50 | 14.4 | 8 | 7 | 6 |
232305 - Face mill SECO Quattromill
Application
These all-purpose, easy-cutting face cutters are specially designed for machining centres with a drive output below 10 kW. The extreme positive rake of the cutters and inserts provide outstanding rates of metal removal, longer life and improved surface quality with low feed rates and shallow cutting depths.
Indexable inserts: 232310
Spare parts: 238000
