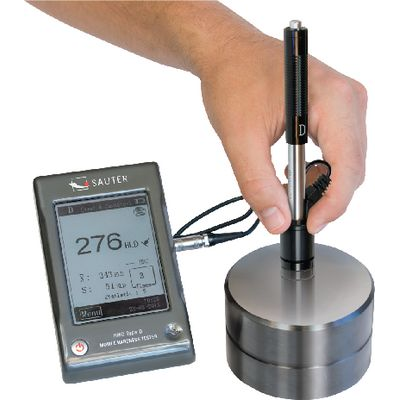

Hardness tester for mobile hardness testing of metals. This device offers a comprehensive range of
functions for professional applications. The innovative touchscreenallows comfortable and easyto-understand operation of the device.
Selectable units:
Leeb (HL)
Rockwell (HR-B/C),
Vickers (HV)
Brinell (HB),
Shore (HSD)
Tensile strengt (MPa)
Features:
LCD display with background lighting
Automatic sensor detection
Auto. compensation for the test direction (360°)
External rebound sensor type D
Internal controller memory (up to 800 sample groups at 99 single values)
Mini statistic function
Accuracy: 1% 800 HLD (± 8 HLD)
Dimensions (L x W x H) / 135 x 83 x 24 mm
Data output USB
External thermoprinter (infrared interface)
Net weight approx. 228 g
Package contents:

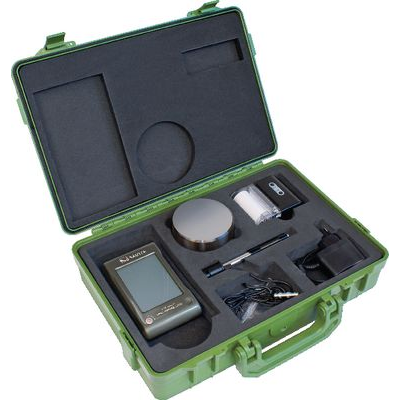

Delivered in sturdy carrying case including display unit, external rebound sensor D, thermoprinter
(infrared interface), test block, power supply and power cable.
Note:
Following a successful measurement (on Leeb device), the desired HRB / HRC / HV / HB / HSD hardness unit can be selected. Unit conversion is performed automatically.
Test piece weight: min. 3 kg on solid base (sensor D)
Thinnest measurable layer: min. 8 mm (sensor D)
* Measuring range subject to material hardness / type
