Swiss Made - Small, compact hardness tester for low-destructiveness Rockwell HRC measurements on metallic materials.
Very easy to operate:
Carry out loading movement at the instrument, position, trigger and read out the hardness value
in HRC at the display.
Application:
Large heavy workpieces/fixed installed system parts
Series production parts during production
Material identification in the materials warehouse
Measurements in hard-to-reach places
Measuring requirements:
Surface Ø min. 10 mm
Measurement surface radius of curvature min. 30 mm
Workpieces lighter than 5 kg - position vibration-freely
Workpieces lighter than 2 kg - use coupling paste
Features include:
Precision ±1.0 HRC
Dimension Ø 12 x 140 mm
Weight 36 g
Automatic on/off function

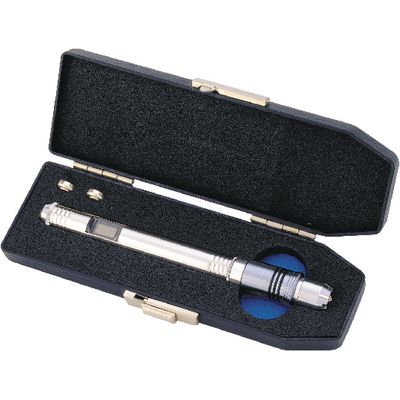

Package contents: Delivered in case.
Appropriate batteries:
2 pieces 155050.1100 - SR45 (394/380) / 1.55 V (included in scope of delivery)
