Hardness tester according to the Leeb method for mobile hardness testing of metals. Premium
instrument with sturdy metal housing for professional applications.
Selectable units:
Leeb (HL)
Rockwell (HR-A/B/C)
Vickers (HV)
Brinell (HB)
Shore (HSD)
Features:
Sturdy metal housing, LCD display
Compensation for the test direction (360°)
External rebound sensor type D
Internal controller memory (up to 600 sample groups at 32 single values)
Mini statistic function
Limit value function with warning
Automatic unit conversion
Accuracy: 1% 800 HLD (± 8 HLD)
Dimensions (L x W x H) / 152 x 84 x 34mm
Battery operation 2x 1.5V AA
Data output USB
Net weight approx. 400 g
Menu appears on English
Package contents:

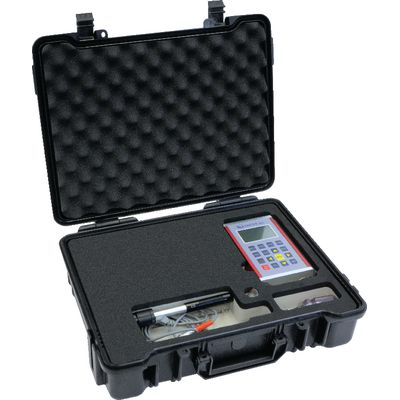

Delivered in sturdy plastic case including display unit and rebound sensor D.
Appropriate batteries:
2 pieces 155050.0300 - LR6 / 1.5 V (AA) (included in scope of delivery).
Note:
Following a successful measurement (on Leeb device), the desired HRB / HRC / HV / HB / HSD hardness unit can be selected. Unit conversion is performed automatically.
Test piece weight: min. 3 kg on solid base (sensor D)
Thinnest measurable layer: min. 8 mm (sensor D)
* Measuring range subject to material hardness / type
