| Mã đặt hàng | Probe | Dải đo vật liệu từ tính Fe | Dải đo vật liệu phi từ tính Fe | Độ chính xác | Kích cỡ |
| µm | µm | mm | |||
| 156570.0100 | Fe / NFe | 0...5000 | 0...5000 | ±(1 µm + 2%*) 0...999 µm ±3.5%* 1...5 mm |
166 x 64 x 34 |
| 156570.0200 | Fe / NFe | 0...5000 | 0...5000 | ±(1 µm + 2%*) 0...999 µm ±3.5%* 1...5 mm |
166 x 64 x 34 |

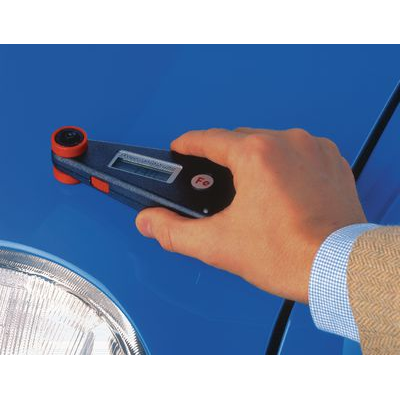

156570 Coating thickness gauge
Measuring without calibrating - Electronic coating thickness gauge with two independent probes. Minimum measurement area 10 x 10 mm, minimum bending radius 5 mm convex, 25 mm
concave, minimum thickness of base material: Fe 0.2 mm, NFe 0.05 mm.
Versions:
Fe probe:
For measuring all non-magnetic coatings on magnetic substrates such as steel and iron.
NFe probe:
For measuring all insulating coatings on non-ferrous metals such as aluminium, copper, brass, zinc,
stainless steel, etc.
156570.0200: includes measurement memory, RS-232 data output and PC software
Package contents:
Delivered in case incl. reference plates Fe/NFe, certificat and manual.
Appropriate batteries:
1 pieces 155050.0400 - LR03 / 1.5 V (AAA) (included in scope of delivery).
