| Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S | Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | ||||||
| 265180.0100 | G1/8“ | 28 | 30 | 11 | 5 | 265180.0700 | G7/8“ | 14 | 65 | 18 | 6 |
| 265180.0200 | G1/4“ | 19 | 38 | 10 | 5 | 265180.0800 | G1“ | 11 | 65 | 18 | 7 |
| 265180.0300 | G3/8“ | 19 | 45 | 14 | 5 | 265180.1000 | G11/4“ | 11 | 75 | 20 | 8 |
| 265180.0400 | G1/2“ | 14 | 45 | 14 | 6 | 265180.1200 | G11/2“ | 11 | 90 | 22 | 8 |
| 265180.0500 | G5/8“ | 14 | 55 | 16 | 5 | 265180.1400 | G2“ | 11 | 105 | 22 | 9 |
| 265180.0600 | G3/4“ | 14 | 55 | 16 | 6 |

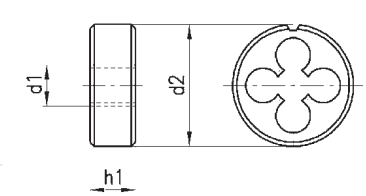

265180 - DC thread cutting dies
HSS G A
HSS, lapped, with two-sided start and spiral entry. Tolerance class A - DIN EN 24231.
Power class N
Length of taper lead: 1.75 x P.
| Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S | Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | ||||||
| 265180.0100 | G1/8“ | 28 | 30 | 11 | 5 | 265180.0700 | G7/8“ | 14 | 65 | 18 | 6 |
| 265180.0200 | G1/4“ | 19 | 38 | 10 | 5 | 265180.0800 | G1“ | 11 | 65 | 18 | 7 |
| 265180.0300 | G3/8“ | 19 | 45 | 14 | 5 | 265180.1000 | G11/4“ | 11 | 75 | 20 | 8 |
| 265180.0400 | G1/2“ | 14 | 45 | 14 | 6 | 265180.1200 | G11/2“ | 11 | 90 | 22 | 8 |
| 265180.0500 | G5/8“ | 14 | 55 | 16 | 5 | 265180.1400 | G2“ | 11 | 105 | 22 | 9 |
| 265180.0600 | G3/4“ | 14 | 55 | 16 | 6 |
265180 - DC thread cutting dies
HSS G A
HSS, lapped, with two-sided start and spiral entry. Tolerance class A - DIN EN 24231.
Power class N
Length of taper lead: 1.75 x P.
