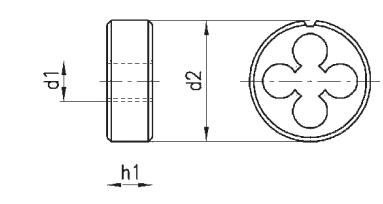

| Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S | Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | ||||||
| 265160.0100 | UNF0 | 80 | 16 | 5 | 3 | 265160.1100 | UNF1/4“ | 28 | 20 | 7 | 4 |
| 265160.0200 | UNF1 | 72 | 16 | 5 | 3 | 265160.1200 | UNF5/16“ | 24 | 25 | 9 | 4 |
| 265160.0300 | UNF2 | 64 | 16 | 5 | 4 | 265160.1300 | UNF3/8“ | 24 | 30 | 11 | 4 |
| 265160.0400 | UNF3 | 56 | 16 | 5 | 4 | 265160.1400 | UNF7/16“ | 20 | 30 | 11 | 5 |
| 265160.0500 | UNF4 | 48 | 16 | 5 | 4 | 265160.1500 | UNF1/2“ | 20 | 38 | 10 | 5 |
| 265160.0600 | UNF5 | 44 | 20 | 5 | 4 | 265160.1600 | UNF9/16“ | 18 | 38 | 10 | 5 |
| 265160.0700 | UNF6 | 40 | 20 | 5 | 4 | 265160.1700 | UNF5/8“ | 18 | 45 | 14 | 5 |
| 265160.0800 | UNF8 | 36 | 20 | 7 | 4 | 265160.1800 | UNF3/4“ | 16 | 45 | 14 | 6 |
| 265160.0900 | UNF10 | 32 | 20 | 7 | 4 | 265160.1900 | UNF7/8“ | 14 | 55 | 16 | 5 |
| 265160.1000 | UNF12 | 28 | 20 | 7 | 4 | 265160.2000 | UNF1“ | 12 | 55 | 16 | 6 |

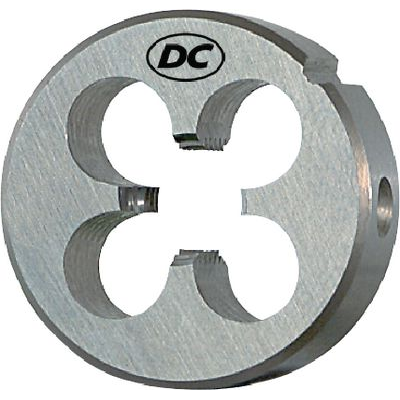

265140 - Threading die DC
HSS, lapped, with spiral entry for UNC 5 and larger. Tolerance range UNC 2A - DIN EN 22568.
Power class N
Length of taper lead: 1.75 x P.
| Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S | Mã đặt hàng | d1 | Gg/1“ | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | ||||||
| 265160.0100 | UNF0 | 80 | 16 | 5 | 3 | 265160.1100 | UNF1/4“ | 28 | 20 | 7 | 4 |
| 265160.0200 | UNF1 | 72 | 16 | 5 | 3 | 265160.1200 | UNF5/16“ | 24 | 25 | 9 | 4 |
| 265160.0300 | UNF2 | 64 | 16 | 5 | 4 | 265160.1300 | UNF3/8“ | 24 | 30 | 11 | 4 |
| 265160.0400 | UNF3 | 56 | 16 | 5 | 4 | 265160.1400 | UNF7/16“ | 20 | 30 | 11 | 5 |
| 265160.0500 | UNF4 | 48 | 16 | 5 | 4 | 265160.1500 | UNF1/2“ | 20 | 38 | 10 | 5 |
| 265160.0600 | UNF5 | 44 | 20 | 5 | 4 | 265160.1600 | UNF9/16“ | 18 | 38 | 10 | 5 |
| 265160.0700 | UNF6 | 40 | 20 | 5 | 4 | 265160.1700 | UNF5/8“ | 18 | 45 | 14 | 5 |
| 265160.0800 | UNF8 | 36 | 20 | 7 | 4 | 265160.1800 | UNF3/4“ | 16 | 45 | 14 | 6 |
| 265160.0900 | UNF10 | 32 | 20 | 7 | 4 | 265160.1900 | UNF7/8“ | 14 | 55 | 16 | 5 |
| 265160.1000 | UNF12 | 28 | 20 | 7 | 4 | 265160.2000 | UNF1“ | 12 | 55 | 16 | 6 |
265140 - Threading die DC
HSS, lapped, with spiral entry for UNC 5 and larger. Tolerance range UNC 2A - DIN EN 22568.
Power class N
Length of taper lead: 1.75 x P.
