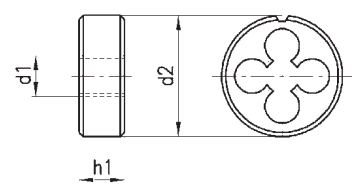

| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 265110.0100 | MF6 | 0.5 | 20 | 5 | 4 | 265110.0900 | MF12 | 1.5 | 38 | 10 | 4 |
| 265110.0200 | MF6 | 0.75 | 20 | 7 | 4 | 265110.1000 | MF14 | 1.5 | 38 | 10 | 5 |
| 265110.0500 | MF8 | 1 | 25 | 9 | 4 | 265110.1100 | MF16 | 1.5 | 45 | 14 | 5 |
| 265110.0600 | MF10 | 1 | 30 | 11 | 5 | 265110.1200 | MF18 | 1.5 | 45 | 14 | 5 |
| 265110.0700 | MF12 | 1 | 38 | 10 | 5 | 265110.1300 | MF20 | 1.5 | 45 | 14 | 6 |
| 265110.0800 | MF12 | 1.25 | 38 | 10 | 4 |
265110 - DC thread cutting dies
HSS MF LH 6g
Left-hand thread, HSS, lapped, with two-side start and spiral entry. Tolerance range 6g - DIN EN
22568.
Power class N
Length of taper lead: 1.75 x P.
| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | mm | mm | ||||
| 265110.0100 | MF6 | 0.5 | 20 | 5 | 4 | 265110.0900 | MF12 | 1.5 | 38 | 10 | 4 |
| 265110.0200 | MF6 | 0.75 | 20 | 7 | 4 | 265110.1000 | MF14 | 1.5 | 38 | 10 | 5 |
| 265110.0500 | MF8 | 1 | 25 | 9 | 4 | 265110.1100 | MF16 | 1.5 | 45 | 14 | 5 |
| 265110.0600 | MF10 | 1 | 30 | 11 | 5 | 265110.1200 | MF18 | 1.5 | 45 | 14 | 5 |
| 265110.0700 | MF12 | 1 | 38 | 10 | 5 | 265110.1300 | MF20 | 1.5 | 45 | 14 | 6 |
| 265110.0800 | MF12 | 1.25 | 38 | 10 | 4 |
265110 - DC thread cutting dies
HSS MF LH 6g
Left-hand thread, HSS, lapped, with two-side start and spiral entry. Tolerance range 6g - DIN EN
22568.
Power class N
Length of taper lead: 1.75 x P.
