| Mã đặt hàng | d1 | P | d2 | h1 | S | Undersize |
| mm | mm | mm | mm | mm | ||
| 265050.0300 | M3 | 0.5 | 16 | 3.5 | 4 | 0.03 |
| 265050.0400 | M4 | 0.7 | 16 | 5 | 4 | 0.035 |
| 265050.0500 | M5 | 0.8 | 20 | 7 | 4 | 0.035 |
| 265050.0600 | M6 | 1 | 20 | 7 | 4 | 0.035 |
| 265050.0800 | M8 | 1.3 | 25 | 9 | 4 | 0.035 |
| 265050.0900 | M10 | 1.5 | 30 | 11 | 6 | 0.035 |

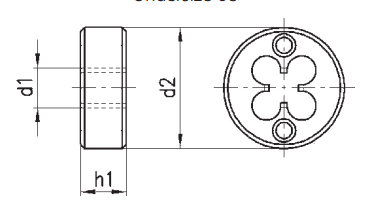

265050 - DC thread cutting dies
Undersize 6e, HSS, lapped, with two mounting holes, two-sided start, spiral entry for M3 and larger, tolerance range 6e - works standard.
| Mã đặt hàng | d1 | P | d2 | h1 | S | Undersize |
| mm | mm | mm | mm | mm | ||
| 265050.0300 | M3 | 0.5 | 16 | 3.5 | 4 | 0.03 |
| 265050.0400 | M4 | 0.7 | 16 | 5 | 4 | 0.035 |
| 265050.0500 | M5 | 0.8 | 20 | 7 | 4 | 0.035 |
| 265050.0600 | M6 | 1 | 20 | 7 | 4 | 0.035 |
| 265050.0800 | M8 | 1.3 | 25 | 9 | 4 | 0.035 |
| 265050.0900 | M10 | 1.5 | 30 | 11 | 6 | 0.035 |
265050 - DC thread cutting dies
Undersize 6e, HSS, lapped, with two mounting holes, two-sided start, spiral entry for M3 and larger, tolerance range 6e - works standard.
