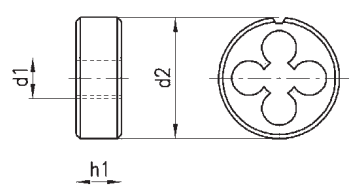

| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 265040.0100 | M3 | 0.5 | 20 | 5 | 3 | 265040.0700 | M10 | 1.5 | 30 | 11 | 4 |
| 265040.0200 | M3.5 | 0.6 | 20 | 5 | 3 | 265040.0800 | M12 | 1.75 | 38 | 14 | 4 |
| 265040.0300 | M4 | 0.7 | 20 | 5 | 3 | 265040.0900 | M14 | 2 | 38 | 14 | 4 |
| 265040.0400 | M5 | 0.8 | 20 | 7 | 4 | 265040.1000 | M16 | 2 | 45 | 18 | 4 |
| 265040.0500 | M6 | 1 | 20 | 7 | 4 | 265040.1200 | M20 | 2.5 | 45 | 18 | 5 |
| 265040.0600 | M8 | 1.25 | 25 | 9 | 4 |
265040 - DC thread cutting dies HSS M LH 6g
Left-hand thread, HSS, lapped, with two-sided start and spiral entry, tolerance range 6g - DIN
22568.
Power class N
Length of taper lead: 1.75 x P.
| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 265040.0100 | M3 | 0.5 | 20 | 5 | 3 | 265040.0700 | M10 | 1.5 | 30 | 11 | 4 |
| 265040.0200 | M3.5 | 0.6 | 20 | 5 | 3 | 265040.0800 | M12 | 1.75 | 38 | 14 | 4 |
| 265040.0300 | M4 | 0.7 | 20 | 5 | 3 | 265040.0900 | M14 | 2 | 38 | 14 | 4 |
| 265040.0400 | M5 | 0.8 | 20 | 7 | 4 | 265040.1000 | M16 | 2 | 45 | 18 | 4 |
| 265040.0500 | M6 | 1 | 20 | 7 | 4 | 265040.1200 | M20 | 2.5 | 45 | 18 | 5 |
| 265040.0600 | M8 | 1.25 | 25 | 9 | 4 |
265040 - DC thread cutting dies HSS M LH 6g
Left-hand thread, HSS, lapped, with two-sided start and spiral entry, tolerance range 6g - DIN
22568.
Power class N
Length of taper lead: 1.75 x P.
