| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ||
| 265020.0100 | M1 | 0.25 | 16 | 5 | 3 | 265020.1200 | M5 | 0.8 | 20 | 7 | 4 |
| 265020.0200 | M1.2 | 0.25 | 16 | 5 | 3 | 265020.1300 | M6 | 1 | 20 | 7 | 4 |
| 265020.0300 | M1.4 | 0.3 | 16 | 5 | 3 | 265020.1400 | M7 | 1 | 25 | 9 | 4 |
| 265020.0400 | M1.6 | 0.35 | 16 | 5 | 3 | 265020.1500 | M8 | 1.25 | 25 | 9 | 4 |
| 265020.0500 | M1.8 | 0.35 | 16 | 5 | 3 | 265020.1600 | M9 | 1.25 | 25 | 9 | 4 |
| 265020.0600 | M2 | 0.4 | 16 | 5 | 3 | 265020.1700 | M10 | 1.5 | 30 | 11 | 4 |
| 265020.0700 | M2.2 | 0.45 | 16 | 5 | 3 | 265020.1800 | M12 | 1.75 | 38 | 14 | 4 |
| 265020.0800 | M2.5 | 0.45 | 16 | 5 | 3 | 265020.1900 | M14 | 2 | 38 | 14 | 4 |
| 265020.0900 | M3 | 0.5 | 20 | 5 | 3 | 265020.2000 | M16 | 2 | 45 | 18 | 4 |
| 265020.1000 | M3.5 | 0.6 | 20 | 5 | 3 | 265020.2200 | M20 | 2.5 | 45 | 18 | 5 |
| 265020.1100 | M4 | 0.7 | 20 | 5 | 3 |

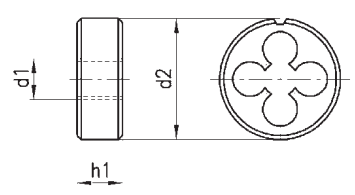

265020 - DC thread cutting dies
HSS M 6g
HSS, lapped, tolerance range 6g - DIN EN 22568, to M1.4 = 6h.
Power class N
Length of taper lead: 1.75 x P.
