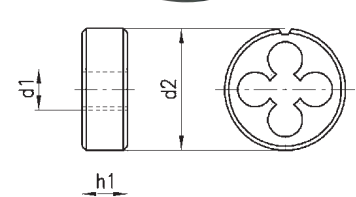

| Mã đặt hàng | d1 | P | d2 | h1 | S | Mã đặt hàng | d1 | P | d2 | h1 | S | ||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |||||
| 265000.0100 | M3 | 0.5 | 20 | 5 | 3 | 265000.1100 | M14 | 2 | 38 | 14 | 4 | ||
| 265000.0200 | M3.5 | 0.6 | 20 | 5 | 3 | 265000.1200 | M16 | 2 | 45 | 18 | 4 | ||
| 265000.0300 | M4 | 0.7 | 20 | 5 | 3 | 265000.1300 | M18 | 2.5 | 45 | 18 | 5 | ||
| 265000.0400 | M5 | 0.8 | 20 | 7 | 4 | 265000.1400 | M20 | 2.5 | 45 | 18 | 5 | ||
| 265000.0500 | M6 | 1 | 20 | 7 | 4 | 265000.1500 | M22 | 2.5 | 55 | 22 | 5 | ||
| 265000.0600 | M7 | 1 | 25 | 9 | 4 | 265000.1600 | M24 | 3 | 55 | 22 | 5 | ||
| 265000.0700 | M8 | 1.25 | 25 | 9 | 4 | 265000.1700 | M27 | 3 | 65 | 25 | 5 | ||
| 265000.0800 | M9 | 1.25 | 25 | 9 | 4 | 265000.1800 | M30 | 3.5 | 65 | 25 | 5 | ||
| 265000.0900 | M10 | 1.5 | 30 | 11 | 4 | 265000.1900 | M33 | 3.5 | 65 | 25 | 6 | ||
| 265000.1000 | M12 | 1.75 | 38 | 14 | 4 | 265000.2000 | M36 | 4 | 65 | 25 | 7 | ||

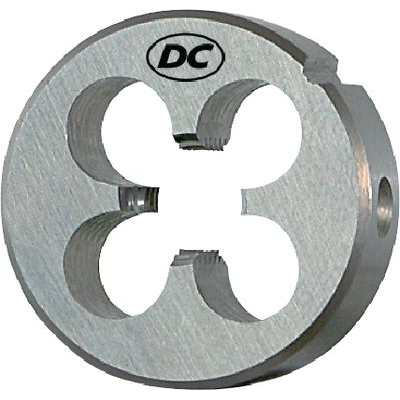

265000 - DC thread cutting dies
HSS M 6g
HSS, lapped, with two-sided start and spiral entry, tolerance range 6g - DIN EN 22568.
Power class N
Length of taper lead: 1.75 x P.
S: Number of pocket holes
