| Mã đặt hàng | D | l1 | d | Alpha |
| mm | mm | mm | ||
| 251122.0100 | 3 | 100 | 0.5 | 60° |
| 251122.0200 | 4 | 100 | 1 | 60° |
| 251122.0300 | 6 | 100 | 2 | 60° |
| 251122.0400 | 8 | 100 | 2.5 | 60° |
| 251122.0500 | 10 | 100 | 3 | 60° |
| 251122.0600 | 12 | 100 | 3.5 | 60° |
251122 - NC spotting drill 60° MAGAFOR
HRC

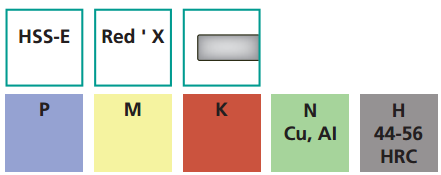

HSS-E Red ' X
HSS-E, Red‘X, cylindrical shank, long.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
| Mã đặt hàng | D | l1 | d | Alpha |
| mm | mm | mm | ||
| 251122.0100 | 3 | 100 | 0.5 | 60° |
| 251122.0200 | 4 | 100 | 1 | 60° |
| 251122.0300 | 6 | 100 | 2 | 60° |
| 251122.0400 | 8 | 100 | 2.5 | 60° |
| 251122.0500 | 10 | 100 | 3 | 60° |
| 251122.0600 | 12 | 100 | 3.5 | 60° |
251122 - NC spotting drill 60° MAGAFOR
HRC
HSS-E Red ' X
HSS-E, Red‘X, cylindrical shank, long.
up to 55 HRC.
The 118° point angle facilitates dipping while simultaneously reinforcing the point.
1 DUO-MAG = 2 single NC spotting drills.
